Metal cable entry · nickel-plated brass body
Brass Cable Glands
Browse ordinary nickel-plated brass cable glands by cable outside diameter, mounting thread and construction. The evidence-backed table covers PJ-A, semi-through and straight-through families in Metric, PG and NPT options.
Product overview
Nickel-plated brass, selected from the cable outward
This is the metal-body route in the Termnex ordinary cable-gland range. The catalogue construction uses a nickel-plated brass body with PA66 clamping components and EPDM sealing components.
Start with the finished cable outside diameter. Then match the complete enclosure thread and usable mounting depth. A label such as M20 describes the mounting thread, not a 20 mm cable.
Brass cable gland size chart
Browse 141 brass cable gland configurations
The filter checks every transcribed Metric, PG and NPT row supported by the scanned tables. Another 28 G/PF rows remain a catalogue-enquiry route. Straight-through G/PF and NPT tables were not present in the scanned source and are not inferred here.
PG37 rows · PG7 to PG63
NPT20 rows · 1/4 to 3
G / PF28 transcribed rows · enquiry only
No row matches every selected filter. Clear one filter or send the cable and enclosure details for a size check.
| Catalogue size | Construction | Thread | Cable Ø | Thread Ø | Thread length | Spanner A/F | Catalogue pack | Enquire |
|---|---|---|---|---|---|---|---|---|
| M8-4.5 | Semi-through | M8×0.5 | 3–4.5 | 8 | 4 | 11/12 | 50 | Send size → |
| M8-4.5 | Straight-through | M8×0.5 | 3–4.5 | 8 | 4 | 11/12 | 50 | Send size → |
| M8-3.8 | PJ-A | M8×1.25 | 2–3.8 | 8 | 5.5 | 13/13 | 50 | Send size → |
| M10-6.5 | PJ-A | M10×1.0 | 3–6.5 | 10 | 6.5 | 14/14 | 50 | Send size → |
| M10-6.5 | Semi-through | M10×1.0 | 3–6.5 | 10 | 6.5 | 14/14 | 50 | Send size → |
| M10-6.5 | Straight-through | M10×1.0 | 3–6.5 | 10 | 6.5 | 14/14 | 50 | Send size → |
| M12S-6.5 | PJ-A | M12×1.5 | 3–6.5 | 12 | 7 | 14/14 | 50 | Send size → |
| M12-8 | PJ-A | M12×1.5 | 4–8 | 12 | 8 | 17/17 | 50 | Send size → |
| M12-6.5 | Semi-through | M12×1.5 | 3–6.5 | 12 | 6.5 | 14/14 | 50 | Send size → |
| M12-8 | Semi-through | M12×1.5 | 4–8 | 12 | 7 | 14/17 | 50 | Send size → |
| M12-6.5 | Straight-through | M12×1.5 | 3–6.5 | 12 | 6.5 | 14/14 | 50 | Send size → |
| M12-8 | Straight-through | M12×1.5 | 4–8 | 12 | 7 | 14/17 | 50 | Send size → |
| M14-8 | Semi-through | M14×1.5 | 4–8 | 14 | 7 | 17/17 | 50 | Send size → |
| M14-8 | Straight-through | M14×1.5 | 4–8 | 14 | 7 | 17/17 | 50 | Send size → |
| M16S-8 | PJ-A | M16×1.5 | 4–8 | 16 | 9 | 18/18 | 50 | Send size → |
| M16-10 | PJ-A | M16×1.5 | 5–10 | 16 | 8 | 22/22 | 50 | Send size → |
| M16-8 | Semi-through | M16×1.5 | 4–8 | 16 | 8 | 18/18 | 50 | Send size → |
| M16-10 | Semi-through | M16×1.5 | 5–10 | 16 | 8 | 18/20 | 50 | Send size → |
| M16-8 | Straight-through | M16×1.5 | 4–8 | 16 | 8 | 18/18 | 50 | Send size → |
| M16-10 | Straight-through | M16×1.5 | 5–10 | 16 | 8 | 18/20 | 50 | Send size → |
| M18-10 | Semi-through | M18×1.5 | 5–10 | 18 | 8 | 20/20 | 50 | Send size → |
| M18-10 | Straight-through | M18×1.5 | 5–10 | 18 | 8 | 20/20 | 50 | Send size → |
| M20S-12 | PJ-A | M20×1.5 | 6–12 | 20 | 9.5 | 24/24 | 50 | Send size → |
| M20-14 | PJ-A | M20×1.5 | 10–14 | 20 | 9.5 | 25/25 | 50 | Send size → |
| M20-12 | Semi-through | M20×1.5 | 6–12 | 20 | 8 | 22/22 | 50 | Send size → |
| M20-12 | Straight-through | M20×1.5 | 6–12 | 20 | 8 | 22/22 | 50 | Send size → |
| M22-14 | Semi-through | M22×1.5 | 10–14 | 22 | 8 | 24/24 | 50 | Send size → |
| M22-14 | Straight-through | M22×1.5 | 10–14 | 22 | 8 | 24/24 | 50 | Send size → |
| M24-14 | Semi-through | M24×1.5 | 10–14 | 24 | 9 | 27/24 | 50 | Send size → |
| M24-14 | Straight-through | M24×1.5 | 10–14 | 24 | 9 | 27/24 | 50 | Send size → |
| M25-18 | PJ-A | M25×1.5 | 13–18 | 25 | 12 | 30/30 | 50 | Send size → |
| M25-14 | Semi-through | M25×1.5 | 10–14 | 25 | 9 | 27/24 | 50 | Send size → |
| M25-16 | Semi-through | M25×1.5 | 12–16 | 25 | 9 | 27/27 | 50 | Send size → |
| M25-18 | Semi-through | M25×1.5 | 13–18 | 25 | 9 | 27/30 | 50 | Send size → |
| M25-14 | Straight-through | M25×1.5 | 10–14 | 25 | 9 | 27/24 | 50 | Send size → |
| M25-16 | Straight-through | M25×1.5 | 12–16 | 25 | 9 | 27/27 | 50 | Send size → |
| M25-18 | Straight-through | M25×1.5 | 13–18 | 25 | 9 | 27/30 | 50 | Send size → |
| M27-18 | Semi-through | M27×1.5(2) | 13–18 | 27 | 9 | 30/30 | 50 | Send size → |
| M27-18 | Straight-through | M27×1.5(2) | 13–18 | 27 | 9 | 30/30 | 50 | Send size → |
| M28-18 | Semi-through | M28×1.5(2) | 13–18 | 28 | 9 | 30/30 | 50 | Send size → |
| M28-18 | Straight-through | M28×1.5(2) | 13–18 | 28 | 9 | 30/30 | 50 | Send size → |
| M30-18 | Semi-through | M30×1.5(2) | 13–18 | 30 | 9 | 32/30 | 50 | Send size → |
| M30-18 | Straight-through | M30×1.5(2) | 13–18 | 30 | 9 | 32/30 | 50 | Send size → |
| M32-25 | PJ-A | M32×1.5 | 18–25 | 32 | 12.5 | 40/40 | 50 | Send size → |
| M32-22 | Semi-through | M32×1.5(2) | 15–22 | 32 | 10 | 35/35 | 50 | Send size → |
| M32-22 | Straight-through | M32×1.5(2) | 15–22 | 32 | 10 | 35/35 | 50 | Send size → |
| M33-22 | Semi-through | M33×1.5(2) | 15–22 | 33 | 10 | 35/35 | 50 | Send size → |
| M33-22 | Straight-through | M33×1.5(2) | 15–22 | 33 | 10 | 35/35 | 50 | Send size → |
| M36-25 | Semi-through | M36×1.5(2) | 18–25 | 36 | 10 | 40/40 | 50 | Send size → |
| M36-25 | Straight-through | M36×1.5(2) | 18–25 | 36 | 10 | 40/40 | 50 | Send size → |
| M37-25 | Semi-through | M37×1.5(2) | 18–25 | 37 | 10 | 40/40 | 50 | Send size → |
| M37-25 | Straight-through | M37×1.5(2) | 18–25 | 37 | 10 | 40/40 | 50 | Send size → |
| M40-30 | PJ-A | M40×1.5 | 24–30 | 40 | 15 | 50/50 | 50 | Send size → |
| M40-30 | Semi-through | M40×1.5(2) | 22–30 | 40 | 11 | 45/45 | 50 | Send size → |
| M40-30 | Straight-through | M40×1.5(2) | 22–30 | 40 | 11 | 45/45 | 50 | Send size → |
| M42-30 | Semi-through | M42×1.5(2) | 22–30 | 42 | 11 | 45/45 | 50 | Send size → |
| M42-30 | Straight-through | M42×1.5(2) | 22–30 | 42 | 11 | 45/45 | 50 | Send size → |
| M47-33 | Semi-through | M47×1.5(2) | 25–33 | 47 | 11 | 50/50 | 50 | Send size → |
| M47-33 | Straight-through | M47×1.5(2) | 25–33 | 47 | 11 | 50/50 | 50 | Send size → |
| M48-33 | Semi-through | M48×1.5(2) | 25–33 | 48 | 11 | 50/52 | 50 | Send size → |
| M48-33 | Straight-through | M48×1.5(2) | 25–33 | 48 | 11 | 50/52 | 50 | Send size → |
| M50-41 | PJ-A | M50×1.5 | 32–41 | 50 | 15 | 59/59 | 50 | Send size → |
| M50-38 | Semi-through | M50×1.5(2) | 32–38 | 50 | 13 | 55/57 | 50 | Send size → |
| M50-38 | Straight-through | M50×1.5(2) | 32–38 | 50 | 13 | 55/57 | 50 | Send size → |
| M54-38 | Semi-through | M54×1.5(2) | 32–38 | 54 | 13 | 55/57 | 50 | Send size → |
| M54-38 | Straight-through | M54×1.5(2) | 32–38 | 54 | 13 | 55/57 | 50 | Send size → |
| M60-44 | Semi-through | M60×1.5(2) | 37–44 | 60 | 14 | 64/64 | 50 | Send size → |
| M60-44 | Straight-through | M60×1.5(2) | 37–44 | 60 | 14 | 64/64 | 50 | Send size → |
| M63-44 | PJ-A | M63×1.5 | 37–44 | 63 | 17 | 67/65 | 50 | Send size → |
| M64-51 | PJ-A | M63×1.5 | 44–51 | 63 | 17 | 73/73 | 50 | Send size → |
| M63-44 | Semi-through | M63×1.5(2) | 37–44 | 63 | 14 | 68/64 | 50 | Send size → |
| M63-44 | Straight-through | M63×1.5(2) | 37–44 | 63 | 14 | 68/64 | 50 | Send size → |
| M64-44 | Semi-through | M64×1.5(2) | 37–44 | 64 | 14 | 68/64 | 50 | Send size → |
| M64-44 | Straight-through | M64×1.5(2) | 37–44 | 64 | 14 | 68/64 | 50 | Send size → |
| M72-52 | Semi-through | M72×1.5(2) | 42–52 | 72 | 16 | 78/78 | 50 | Send size → |
| M72-52 | Straight-through | M72×1.5(2) | 42–52 | 72 | 16 | 78/78 | 50 | Send size → |
| M75-52 | Semi-through | M75×1.5(2) | 42–52 | 75 | 16 | 78/78 | 50 | Send size → |
| M75-52 | Straight-through | M75×1.5(2) | 42–52 | 75 | 16 | 78/78 | 50 | Send size → |
| M80-62 | Semi-through | M80×1.5(2) | 55–62 | 80 | 18 | 88/88 | 50 | Send size → |
| M80-62 | Straight-through | M80×1.5(2) | 55–62 | 80 | 18 | 88/88 | 50 | Send size → |
| M88-70 | Semi-through | M88×1.5(2) | 65–70 | 88 | 18 | 94/94 | 50 | Send size → |
| M88-70 | Straight-through | M88×1.5(2) | 65–70 | 88 | 18 | 94/94 | 50 | Send size → |
| M100-84 | Semi-through | M100×1.5(2) | 78–84 | 100 | 20 | 110/110 | 50 | Send size → |
| M100-84 | Straight-through | M100×1.5(2) | 78–84 | 100 | 20 | 110/110 | 50 | Send size → |
| PG7-6.5 | PJ-A | PG7 | 3–6.5 | 12.5 | 7 | 14/14 | 50 | Send size → |
| PG7-8 | PJ-A | PG7 | 4–8 | 12.5 | 8 | 17/17 | 50 | Send size → |
| PG7-6.5 | Semi-through | PG7 | 3–6.5 | 12.5 | 6.5 | 14/14 | 50 | Send size → |
| PG7-6.5 | Straight-through | PG7 | 3–6.5 | 12.5 | 6.5 | 14/14 | 50 | Send size → |
| PG9-8 | PJ-A | PG9 | 4–8 | 15.2 | 8 | 18/18 | 50 | Send size → |
| PG9-8 | Semi-through | PG9 | 4–8 | 15.2 | 7 | 17/17 | 50 | Send size → |
| PG9-8 | Straight-through | PG9 | 4–8 | 15.2 | 7 | 17/17 | 50 | Send size → |
| PG11-10 | PJ-A | PG11 | 5–10 | 18.6 | 9 | 22/22 | 50 | Send size → |
| PG11-10 | Semi-through | PG11 | 5–10 | 18.6 | 8 | 20/20 | 50 | Send size → |
| PG11-10 | Straight-through | PG11 | 5–10 | 18.6 | 8 | 20/20 | 50 | Send size → |
| PG13.5-12 | PJ-A | PG13.5 | 6–12 | 20.4 | 9.5 | 24/24 | 50 | Send size → |
| PG13.5-12 | Semi-through | PG13.5 | 6–12 | 20.4 | 8 | 22/22 | 50 | Send size → |
| PG13.5-12 | Straight-through | PG13.5 | 6–12 | 20.4 | 8 | 22/22 | 50 | Send size → |
| PG16-14 | PJ-A | PG16 | 10–14 | 22.5 | 9.5 | 25/25 | 50 | Send size → |
| PG16-14 | Semi-through | PG16 | 10–14 | 22.5 | 9 | 24/24 | 50 | Send size → |
| PG16-14 | Straight-through | PG16 | 10–14 | 22.5 | 9 | 24/24 | 50 | Send size → |
| PG19-14 | Semi-through | PG19 | 10–14 | 25 | 9 | 27/24 | 50 | Send size → |
| PG19-14 | Straight-through | PG19 | 10–14 | 25 | 9 | 27/24 | 50 | Send size → |
| PG21-18 | PJ-A | PG21 | 13–18 | 28.3 | 12 | 30/30 | 50 | Send size → |
| PG21-18 | Semi-through | PG21 | 13–18 | 28.3 | 9 | 30/30 | 50 | Send size → |
| PG21-18 | Straight-through | PG21 | 13–18 | 28.3 | 9 | 30/30 | 50 | Send size → |
| PG25-22 | Semi-through | PG25 | 15–22 | 32 | 10 | 35/35 | 50 | Send size → |
| PG25-22 | Straight-through | PG25 | 15–22 | 32 | 10 | 35/35 | 50 | Send size → |
| PG29-25 | PJ-A | PG29 | 18–25 | 37 | 12.5 | 40/40 | 50 | Send size → |
| PG29-25 | Semi-through | PG29 | 18–25 | 37 | 11 | 40/40 | 50 | Send size → |
| PG29-25 | Straight-through | PG29 | 18–25 | 37 | 11 | 40/40 | 50 | Send size → |
| PG36-30 | PJ-A | PG36 | 25–30 | 47 | 15 | 50/50 | 50 | Send size → |
| PG36-33 | Semi-through | PG36 | 25–33 | 47 | 11 | 50/50 | 50 | Send size → |
| PG36-33 | Straight-through | PG36 | 25–33 | 47 | 11 | 50/50 | 50 | Send size → |
| PG42-41 | PJ-A | PG42 | 32–41 | 54 | 15 | 59/59 | 50 | Send size → |
| PG42-38 | Semi-through | PG42 | 32–38 | 54 | 13 | 57/57 | 50 | Send size → |
| PG42-38 | Straight-through | PG42 | 32–38 | 54 | 13 | 57/57 | 50 | Send size → |
| PG48-44 | PJ-A | PG48 | 37–45 | 59.3 | 17 | 67/65 | 50 | Send size → |
| PG48-44 | Semi-through | PG48 | 37–44 | 59.3 | 14 | 64/64 | 50 | Send size → |
| PG48-44 | Straight-through | PG48 | 37–44 | 59.3 | 14 | 64/64 | 50 | Send size → |
| PG63-52 | Semi-through | PG63 | 42–52 | 72 | 16 | 78/78 | 50 | Send size → |
| PG63-52 | Straight-through | PG63 | 42–52 | 72 | 16 | 78/78 | 50 | Send size → |
| NPT1 | PJ-A | NPT1 | 16–22 | 33.2 | 15 | 41/41 | 50 | Send size → |
| NPT1 | PJ-A | NPT1 | 18–25 | 33.2 | 15 | 41/41 | 50 | Send size → |
| NPT1 | Semi-through | NPT1 | 18–25 | 33.2 | 11 | 40/40 | 50 | Send size → |
| NPT1-1/2 | Semi-through | NPT1-1/2 | 32–38 | 48 | 14 | 57/57 | 50 | Send size → |
| NPT1-1/4 | PJ-A | NPT1-1/4 | 21–25 | 41.9 | 15 | 50/50 | 50 | Send size → |
| NPT1-1/4 | PJ-A | NPT1-1/4 | 24–30 | 41.9 | 15 | 50/50 | 50 | Send size → |
| NPT1-1/4 | Semi-through | NPT1-1/4 | 25–33 | 41.9 | 13 | 50/50 | 50 | Send size → |
| NPT1/2 | PJ-A | NPT1/2 | 7–11 | 21.2 | 13 | 26/26 | 50 | Send size → |
| NPT1/2 | PJ-A | NPT1/2 | 9–14 | 21.2 | 13 | 26/26 | 50 | Send size → |
| NPT1/2 | Semi-through | NPT1/2 | 6–12 | 21.2 | 8 | 22/22 | 50 | Send size → |
| NPT1/4 | Semi-through | NPT1/4 | 3–6.5 | 13.6 | 6 | 14/14 | 50 | Send size → |
| NPT2 | Semi-through | NPT2 | 37–44 | 60 | 14 | 64/64 | 50 | Send size → |
| NPT2-1/2 | Semi-through | NPT2-1/2 | 42–52 | 72.6 | 15 | 77/77 | 50 | Send size → |
| NPT3 | Semi-through | NPT3 | 65–70 | 88.6 | 15 | 94/94 | 50 | Send size → |
| NPT3/4 | PJ-A | NPT3/4 | 12–16 | 26.5 | 14 | 32/32 | 50 | Send size → |
| NPT3/4 | PJ-A | NPT3/4 | 14–18 | 26.5 | 14 | 32/32 | 50 | Send size → |
| NPT3/4 | Semi-through | NPT3/4 | 13–18 | 26.5 | 9 | 30/30 | 50 | Send size → |
| NPT3/8 | PJ-A | NPT3/8 | 4–7 | 17.055 | 13 | 22/22 | 50 | Send size → |
| NPT3/8 | PJ-A | NPT3/8 | 6–10 | 17.055 | 13 | 22/22 | 50 | Send size → |
| NPT3/8 | Semi-through | NPT3/8 | 4–8 | 17 | 8 | 18/18 | 50 | Send size → |
“Catalogue pack” records the printed packing quantity; it is not a confirmed MOQ, stock statement or order commitment. Semi-through and straight-through constructions use the same ordinary metal-gland size reference; send the catalogue size together with the required construction.
Catalogue facts
Common specifications
| Property | Catalogue value |
|---|---|
| Body | Nickel-plated brass |
| Clamping components | PA66 |
| Sealing components | EPDM |
| Mounting threads | Metric, PG, NPT and G/PF |
Metal body does not automatically mean EMC, earthing or armoured-cable termination. Those functions require a construction and documentation matched to the application.
Protection ratings, approvals, pricing, MOQ, availability, lead time and model-matched documents are confirmed for the selected configuration at quotation.
Three checks before choosing
Match cable, thread and construction separately
Rendered examples explain the selection route. Use the catalogue values in the table for dimensions; unconfirmed external proportions and rendered thread pitch remain visual proxies pending samples.

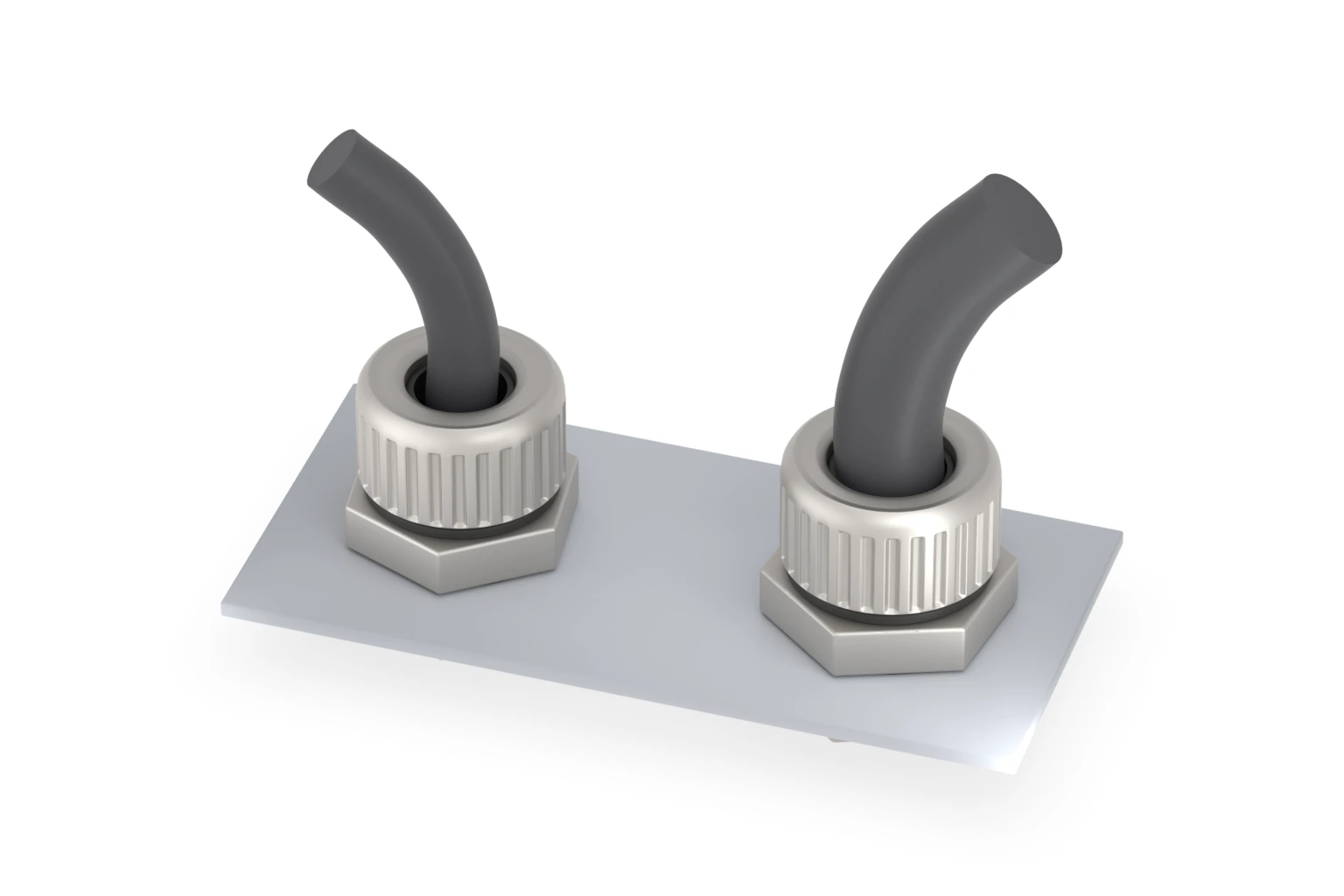

Measure cable outside diameter
Measure over the finished outer jacket. Choose a listed cable range that contains the diameter; do not select from conductor cross-section.

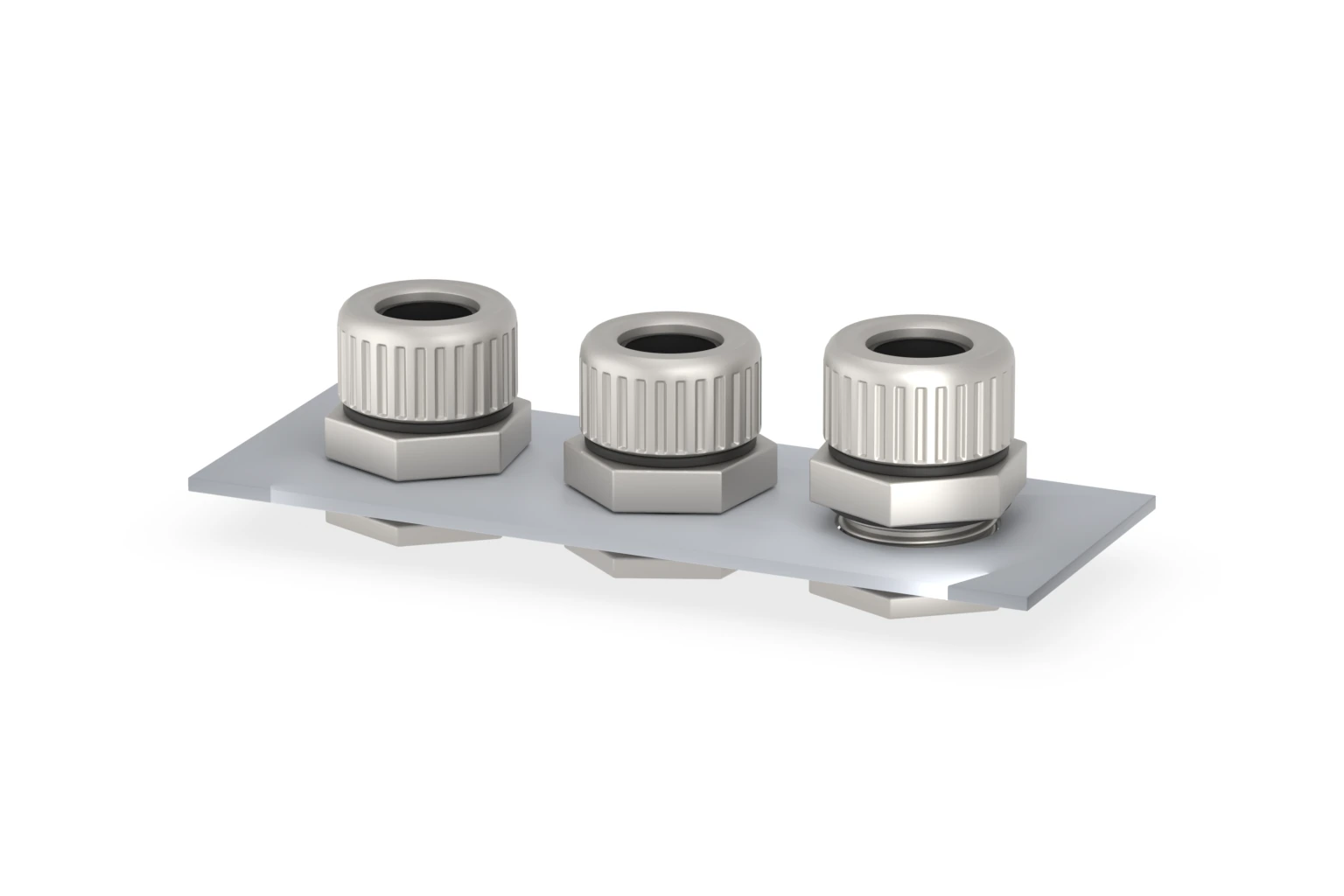

Identify the mounting thread
Use the complete designation, such as M20 × 1.5, PG16 or NPT 1/2. Similar nominal sizes are not automatically interchangeable.
Confirm construction and depth
Select PJ-A, semi-through or straight-through from the application requirement, then confirm panel thickness and usable thread engagement.
Ordinary single-cable glands
Three catalogue constructions
PJ-A
The named standard family has model codes across Metric, PG, G/PF and NPT rows. It is the clearest starting point when the application calls for an ordinary nickel-plated brass gland.
Semi-through
The scanned tables provide Metric, PG, G/PF and NPT size rows. Supplier model codes and the application distinction from straight-through still need quotation-stage confirmation.
Straight-through
The evidence-backed table provides Metric and PG rows only. G/PF or NPT versions are not copied from the semi-through table.
Not armoured / SWA
These are ordinary sealing and strain-relief cable glands. A2, CW, single-compression and double-compression armoured-cable terms are separate product constructions.
Ordering
Request a brass cable gland match
Send the cable outside diameter, mounting thread or enclosure drawing, panel thickness, required construction, quantity and destination. The fields below carry into the Termnex enquiry form.
Frequently asked questions
Brass cable gland FAQ
How do I choose a brass cable gland size?
Start with the finished cable outside diameter, then match the enclosure thread and confirm the listed thread length and construction.
Does an M20 brass cable gland fit a 20 mm cable?
No. M20 identifies the mounting thread. For example, the listed PJ-A M20 options cover smaller cable ranges, including 6–12 mm and 10–14 mm.
Are brass cable glands and metal cable glands the same thing?
Metal cable gland is the broader term. This range specifically uses nickel-plated brass bodies; other metal glands may use stainless steel or different constructions.
Can these brass glands be used for armoured or SWA cable?
Not as an automatic substitute. A2, CW and compression glands include application-specific constructions for armoured cable; this page covers ordinary sealing and strain-relief glands.
Does the brass body provide EMC shielding or earthing?
The body material alone is not enough to claim an EMC or earthing function. Confirm the complete gland design, cable screen termination method and model-matched documents.
Are these brass cable glands IP68 certified?
The source catalogue presents protection information at family level, but the applicable test scope and model-matched documents must be confirmed for the selected configuration.
