Non-metallic cable entry · PA66 body
Nylon Cable Glands (Plastic Cable Glands)
Browse ordinary nylon cable glands by cable outside diameter, mounting thread and thread length. The listed range covers Metric, PG and NPT options in black or grey PA66 constructions.
Product overview
One material route, three primary thread systems
Nylon cable glands are the non-metallic route in the Termnex cable-gland range. Buyers also use the broader name plastic cable gland; this catalogue route specifically uses PA66 nylon bodies with EPDM sealing components.
Choose the cable clamping range first, then match the enclosure thread and usable mounting depth. A thread label such as M20 does not describe the cable diameter. The cable gland size chart sets the Metric and PG ranges out as static tables if you would rather read them than filter.
Browse the range
Nylon cable gland sizes
The filter checks all 136 listed Metric, PG and NPT configurations. G/PF remains a separate catalogue-enquiry route and is not mixed into the public Metric, PG and NPT table.
PG46 rows · PG7 to PG48
NPT12 rows · 1/4″ to 1 1/4″
G / PF30 catalogue configurations · enquiry only
No row matches every selected filter. Clear one filter or send the cable and enclosure details for a model check.
| Model | Type | Thread | Cable Ø | Thread Ø | Thread length | Spanner A/F | Catalogue pack | Enquire |
|---|---|---|---|---|---|---|---|---|
| MGB8-2.5 | B-type | M8×1 | 1–2.5 | 8 | 7.5 | 12/13 | 50 | Send model → |
| MGB8-4.8 | B-type | M8×1 | 2–4.8 | 8 | 7.5 | 12/13 | 50 | Send model → |
| MGB10-3 | B-type | M10×1.25 | 1–3 | 10 | 8 | 15/13 | 50 | Send model → |
| MGB10-6 | B-type | M10×1.25 | 3–6 | 10 | 8 | 15/13 | 50 | Send model → |
| MGB12S-3 | B-type | M12×1.5 | 1–3 | 12 | 8.5 | 18/15 | 50 | Send model → |
| MGB12SL-3 | B-type | M12×1.5 | 1–3 | 12 | 15 | 18/15 | 50 | Send model → |
| MGB12-5 | B-type | M12×1.5 | 3–5 | 12 | 8.5 | 18/19 | 50 | Send model → |
| MGB12L-5 | B-type | M12×1.5 | 3–5 | 12 | 15 | 18/19 | 50 | Send model → |
| MGB12S-6.5 | B-type | M12×1.5 | 3–6.5 | 12 | 8.5 | 18/15 | 50 | Send model → |
| MGB12SL-6.5 | B-type | M12×1.5 | 3–6.5 | 12 | 15 | 18/15 | 50 | Send model → |
| MGB12-8 | B-type | M12×1.5 | 4–8 | 12 | 8.5 | 18/19 | 50 | Send model → |
| MGB12L-8 | B-type | M12×1.5 | 4–8 | 12 | 15 | 18/19 | 50 | Send model → |
| MGA12-5.5 | A-type | M12×1.5 | 3–5.5 | 12 | 8.5 | 18/19 | 50 | Send model → |
| MGA12-08 | A-type | M12×1.5 | 4–8 | 12 | 8.5 | 18/19 | 50 | Send model → |
| MGB16S-5 | B-type | M16×1.5 | 3–5.5 | 16 | 10 | 22/19 | 50 | Send model → |
| MGB16SL-5 | B-type | M16×1.5 | 3–5.5 | 16 | 15 | 22/19 | 50 | Send model → |
| MGB16-7 | B-type | M16×1.5 | 3–7 | 16 | 10 | 22/22 | 50 | Send model → |
| MGB16L-7 | B-type | M16×1.5 | 3–7 | 16 | 15 | 22/22 | 50 | Send model → |
| MGB16S-8 | B-type | M16×1.5 | 4–8 | 16 | 10 | 22/19 | 50 | Send model → |
| MGB16SL-8 | B-type | M16×1.5 | 4–8 | 16 | 15 | 22/19 | 50 | Send model → |
| MGB16-10 | B-type | M16×1.5 | 6–10 | 16 | 10 | 22/22 | 50 | Send model → |
| MGB16L-10 | B-type | M16×1.5 | 6–10 | 16 | 15 | 22/22 | 50 | Send model → |
| MGA16-7-ST | A-type | M16×1.5 | 4–7 | 16 | 10 | 22/22 | 50 | Send model → |
| MGA16L-7 | A-type | M16×1.5 | 4–7 | 16 | 15 | 22/22 | 50 | Send model → |
| MGA16-10-ST | A-type | M16×1.5 | 6–10 | 16 | 10 | 22/22 | 50 | Send model → |
| MGA16L-10 | A-type | M16×1.5 | 6–10 | 16 | 15 | 22/22 | 50 | Send model → |
| MGB18-7 | B-type | M18×1.5 | 3–7 | 18 | 10 | 24/22 | 50 | Send model → |
| MGB18L-7 | B-type | M18×1.5 | 3–7 | 18 | 15 | 24/22 | 50 | Send model → |
| MGB18-10 | B-type | M18×1.5 | 6–10 | 18 | 10 | 24/22 | 50 | Send model → |
| MGB18L-10 | B-type | M18×1.5 | 6–10 | 18 | 15 | 24/22 | 50 | Send model → |
| MGB20S-9 | B-type | M20×1.5 | 5–9 | 20 | 10 | 27/24 | 50 | Send model → |
| MGB20SL-9 | B-type | M20×1.5 | 5–9 | 20 | 15 | 27/24 | 50 | Send model → |
| MGB20S-12.5 | B-type | M20×1.5 | 6–12.5 | 20 | 10 | 27/24 | 50 | Send model → |
| MGB20SL-12.5 | B-type | M20×1.5 | 6–12.5 | 20 | 15 | 27/24 | 50 | Send model → |
| MGB20-11 | B-type | M20×1.5 | 7–11 | 20 | 10 | 27/27 | 50 | Send model → |
| MGB20L-11 | B-type | M20×1.5 | 7–11 | 20 | 15 | 27/27 | 50 | Send model → |
| MGB20-13.5 | B-type | M20×1.5 | 9–14 | 20 | 10 | 27/27 | 50 | Send model → |
| MGB20L-13.5 | B-type | M20×1.5 | 9–14 | 20 | 15 | 27/27 | 50 | Send model → |
| MGA20-11-ST | A-type | M20×1.5 | 6–11 | 20 | 10 | 27/27 | 50 | Send model → |
| MGA20L-11 | A-type | M20×1.5 | 6–11 | 20 | 15 | 27/27 | 50 | Send model → |
| MGA20-14-ST | A-type | M20×1.5 | 8–14 | 20 | 10 | 27/27 | 50 | Send model → |
| MGA20L-14 | A-type | M20×1.5 | 8–14 | 20 | 15 | 27/27 | 50 | Send model → |
| MGB25S-11 | B-type | M25×1.5 | 5–11 | 25 | 12 | 33/27 | 50 | Send model → |
| MGB25-13 | B-type | M25×1.5 | 7–13 | 25 | 12 | 33/33 | 50 | Send model → |
| MGB25L-13 | B-type | M25×1.5 | 7–13 | 25 | 15 | 33/33 | 50 | Send model → |
| MGB25S-14 | B-type | M25×1.5 | 9–14 | 25 | 12 | 33/27 | 50 | Send model → |
| MGB25-18 | B-type | M25×1.5 | 13–18 | 25 | 12 | 33/33 | 50 | Send model → |
| MGB25L-18 | B-type | M25×1.5 | 13–18 | 25 | 15 | 33/33 | 50 | Send model → |
| MGA25-16-ST | A-type | M25×1.5 | 12–16 | 25 | 12 | 33/33 | 50 | Send model → |
| MGA25L-16 | A-type | M25×1.5 | 12–16 | 25 | 15 | 33/33 | 50 | Send model → |
| MGA25-18-ST | A-type | M25×1.5 | 13–18 | 25 | 12 | 33/33 | 50 | Send model → |
| MGA25L-18 | A-type | M25×1.5 | 13–18 | 25 | 15 | 33/33 | 50 | Send model → |
| MGB32-17.5 Confirm option | B-type | M32×1.5 | 13–17.5 | 32 | 12 | 41/42 | 20 | Send model → |
| MGB32-17.5 Confirm option | B-type | M32×1.5 | 13–17.5 | 32 | 15 | 41/42 | 20 | Send model → |
| MGB32-25 Confirm option | B-type | M32×1.5 | 18–25 | 32 | 12 | 41/42 | 20 | Send model → |
| MGB32-25 Confirm option | B-type | M32×1.5 | 18–25 | 32 | 15 | 41/42 | 20 | Send model → |
| MGA32-22 | A-type | M32×1.5 | 15–22 | 32 | 12 | 41/42 | 20 | Send model → |
| MGA32L-22 | A-type | M32×1.5 | 15–22 | 32 | 15 | 41/42 | 20 | Send model → |
| MGA32-25 | A-type | M32×1.5 | 18–25 | 32 | 12 | 41/42 | 20 | Send model → |
| MGA32L-25 | A-type | M32×1.5 | 18–25 | 32 | 15 | 41/42 | 20 | Send model → |
| MGB36-17.5 | B-type | M36×1.5 | 13–17.5 | 36 | 12 | 45/42 | 20 | Send model → |
| MGB36-25 | B-type | M36×1.5 | 18–25 | 36 | 12 | 45/42 | 20 | Send model → |
| MGB40-25 | B-type | M40×1.5 | 18–25 | 40 | 15 | 50/52 | 10 | Send model → |
| MGB40-31 | B-type | M40×1.5 | 26–31 | 40 | 15 | 50/52 | 10 | Send model → |
| MGA40-26 | A-type | M40×1.5 | 20–26 | 40 | 20 | 50/52 | 10 | Send model → |
| MGA40-31 | A-type | M40×1.5 | 24–31 | 40 | 20 | 50/52 | 10 | Send model → |
| MGB50-32 Confirm option | B-type | M50×1.5 | 2–32 | 50 | 15 | 62/62 | 10 | Send model → |
| MGB50-41 Confirm option | B-type | M50×1.5 | 26–31 | 50 | 15 | 62/62 | 10 | Send model → |
| MGA50-33 | A-type | M50×1.5 | 25–33 | 50 | 22 | 62/62 | 10 | Send model → |
| MGA50-41 | A-type | M50×1.5 | 31–41 | 50 | 22 | 62/62 | 10 | Send model → |
| MGB63-41 | B-type | M63×1.5 | 30–41 | 63 | 18 | 75/65 | 10 | Send model → |
| MGB63-45 | B-type | M63×1.5 | 35–45 | 63 | 18 | 75/65 | 10 | Send model → |
| MGA63-46 | A-type | M63×1.5 | 39–46 | 63 | 25 | 75/75 | 10 | Send model → |
| MGA63-51 | A-type | M63×1.5 | 41–51 | 63 | 25 | 75/75 | 10 | Send model → |
| MGA75-56 | A-type | M75×2.0 | 50–56 | 75 | 25 | 92/92 | 1 | Send model → |
| MGA75-66 | A-type | M75×2.0 | 56–66 | 75 | 25 | 92/92 | 1 | Send model → |
| MGA90-68 | A-type | M90×2.0 | 58–88 | 90 | 25 | 110/110 | 1 | Send model → |
| MGA90-77 | A-type | M90×2.0 | 66–77 | 90 | 25 | 110/110 | 1 | Send model → |
| PGB7S-3 | B-type | PG7 | 1–3 | 12.5 | 8 | 17/15 | 50 | Send model → |
| PGB7-5 | B-type | PG7 | 3–5.5 | 12.5 | 8 | 17/19 | 50 | Send model → |
| PGB7S-6 | B-type | PG7 | 3–6.5 | 12.5 | 8 | 17/15 | 50 | Send model → |
| PGB7-8 | B-type | PG7 | 4–8 | 12.5 | 8 | 17/19 | 50 | Send model → |
| PGA7-5.5 | A-type | PG7 | 3–5.5 | 12.5 | 8 | 17/19 | 50 | Send model → |
| PGA7-8 | A-type | PG7 | 4–8 | 12.5 | 8 | 17/19 | 50 | Send model → |
| PGB9-5.5 | B-type | PG9 | 3–5.5 | 15.2 | 8 | 22/19 | 50 | Send model → |
| PGB9-8 | B-type | PG9 | 4–8 | 15.2 | 8 | 22/19 | 50 | Send model → |
| PGA9-5.5 | A-type | PG9 | 3–5.5 | 15.2 | 8.2 | 22/19 | 50 | Send model → |
| PGA9-8 | A-type | PG9 | 4–8 | 15.2 | 8.2 | 22/19 | 50 | Send model → |
| PGB11-7 | B-type | PG11 | 3–7 | 18.6 | 10 | 24/22 | 50 | Send model → |
| PGB11L-7 | B-type | PG11 | 3–7 | 18.6 | 15 | 24/22 | 50 | Send model → |
| PGB11-10 | B-type | PG11 | 6–10 | 18.6 | 10 | 24/22 | 50 | Send model → |
| PGB11L-10 | B-type | PG11 | 6–10 | 18.6 | 15 | 24/22 | 50 | Send model → |
| PGA11-7 | A-type | PG11 | 4–7 | 18.6 | 10 | 24/22 | 50 | Send model → |
| PGA11-10 | A-type | PG11 | 6–10 | 18.6 | 10 | 24/22 | 50 | Send model → |
| PGB13.5-9 | B-type | PG13.5 | 5–9 | 20.4 | 10 | 27/24 | 50 | Send model → |
| PGB13.5-12.5 | B-type | PG13.5 | 7–12.5 | 20.4 | 10 | 27/24 | 50 | Send model → |
| PGA13.5-9 | A-type | PG13.5 | 5–9 | 20.4 | 10 | 27/24 | 50 | Send model → |
| PGA13.5-12.5 | A-type | PG13.5 | 8–12.5 | 20.4 | 10 | 27/24 | 50 | Send model → |
| PGB16-11 | B-type | PG16 | 5–11 | 22.5 | 10.8 | 30/27 | 50 | Send model → |
| PGB16-14 | B-type | PG16 | 8–14 | 22.5 | 10.8 | 30/27 | 50 | Send model → |
| PGA16-11 | A-type | PG16 | 5–11 | 22.5 | 11 | 30/27 | 50 | Send model → |
| PGA16-14 | A-type | PG16 | 8–14 | 22.5 | 11 | 30/27 | 50 | Send model → |
| PGB19-11 | B-type | PG19 | 5–11 | 24 | 11 | 30/27 | 50 | Send model → |
| PGB19-14 | B-type | PG19 | 8–14 | 24 | 11 | 30/27 | 50 | Send model → |
| PGB21-13 | B-type | PG21 | 7–13 | 28.3 | 12 | 36/33 | 50 | Send model → |
| PGB21-18 | B-type | PG21 | 12–18 | 28.3 | 12 | 36/33 | 50 | Send model → |
| PGA21-16 | A-type | PG21 | 10–16 | 28.3 | 12 | 36/33 | 50 | Send model → |
| PGA21-18 | A-type | PG21 | 12–18 | 28.3 | 12 | 36/33 | 50 | Send model → |
| PGB25-20 | B-type | PG25 | 14–20 | 30 | 13 | 36/37 | 50 | Send model → |
| PGB29-17.5 | B-type | PG29 | 13–17.5 | 37 | 12 | 46/41 | 20 | Send model → |
| PGB29-25 | B-type | PG29 | 17–25 | 37 | 12 | 46/41 | 20 | Send model → |
| PGA29-22 | A-type | PG29 | 15–22 | 37 | 12 | 46/41 | 20 | Send model → |
| PGA29-25 | A-type | PG29 | 18–25 | 37 | 12 | 46/41 | 20 | Send model → |
| PGB36-25.5 | B-type | PG36 | 17–25.5 | 47 | 15 | 57/52 | 10 | Send model → |
| PGB36-31 | B-type | PG36 | 24–32 | 47 | 15 | 57/52 | 10 | Send model → |
| PGA36-26 | A-type | PG36 | 20–26 | 47 | 14 | 57/52 | 10 | Send model → |
| PGA36-31 | A-type | PG36 | 26–31 | 47 | 14 | 57/52 | 10 | Send model → |
| PGB42-32 | B-type | PG42 | 25–32 | 54 | 15 | 64/62 | 10 | Send model → |
| PGB42-41 | B-type | PG42 | 31–41 | 54 | 15 | 64/62 | 10 | Send model → |
| PGA42-33 | A-type | PG42 | 25–33 | 54 | 15 | 64/62 | 10 | Send model → |
| PGA42-41 | A-type | PG42 | 31–41 | 54 | 15 | 64/62 | 10 | Send model → |
| PGB48-38 | B-type | PG48 | 29–38 | 59.3 | 18.2 | 70/65 | 10 | Send model → |
| PGB48-45 | B-type | PG48 | 39–45 | 59.3 | 18.2 | 70/65 | 10 | Send model → |
| PGA48-51 | A-type | PG48 | 41–51 | 59.3 | 18.2 | 70/75 | 10 | Send model → |
| NPTB1/4-5.5 | B-type | NPT 1/4" | 3–5.5 | 13.157 | 8.5 | 19 | 50 | Send model → |
| NPTB1/4-8 | B-type | NPT 1/4" | 4–8 | 13.157 | 8.5 | 19 | 50 | Send model → |
| NPTB3/8-7 | B-type | NPT 3/8" | 3–7 | 16.662 | 10 | 22 | 50 | Send model → |
| NPTB3/8-10 | B-type | NPT 3/8" | 6–10 | 16.662 | 10 | 22 | 50 | Send model → |
| NPTB1/2-9 | B-type | NPT 1/2" | 4–9 | 20.955 | 10 | 24 | 50 | Send model → |
| NPTB1/2-13 | B-type | NPT 1/2" | 6–12.5 | 20.955 | 10 | 24 | 50 | Send model → |
| NPTB3/4-13 | B-type | NPT 3/4" | 7–13 | 26.441 | 15 | 33 | 50 | Send model → |
| NPTB3/4-18 | B-type | NPT 3/4" | 12–18 | 26.441 | 15 | 33 | 50 | Send model → |
| NPTB1-17.5 | B-type | NPT 1" | 13–17.5 | 33.249 | 15 | 41 | 20 | Send model → |
| NPTB1-25 | B-type | NPT 1" | 17–25 | 33.249 | 15 | 41 | 20 | Send model → |
| NPTB1 1/4-25.5 | B-type | NPT 1 1/4" | 17–25.5 | 41.91 | 15 | 52 | 20 | Send model → |
| NPTB1 1/4-31 | B-type | NPT 1 1/4" | 24–31 | 41.91 | 15 | 52 | 20 | Send model → |
“Catalogue pack” records the printed packing quantity. It is not a confirmed sales MOQ, stock statement or order commitment. Rows marked “Confirm option” preserve a catalogue ambiguity and are checked when that configuration is requested.
Catalogue facts
Common specifications
| Property | Catalogue value |
|---|---|
| Body and clamping parts | PA66 nylon |
| Sealing components | EPDM |
| Catalogue colours | Black and grey; other colours described as custom |
| Mounting threads | Metric, PG, NPT and G/PF |
Protection and documents are checked per selected model. The source catalogue prints IP68-10 and approval marks at family level, but Termnex has not yet matched the test scope or documents to every model in this table.
Pricing, MOQ, availability, lead time and model-matched documentation are confirmed with the quotation.
Three checks before choosing
Match the cable and the enclosure separately
Rendered examples show the selection difference; use the catalogue values in the table for dimensions. Unconfirmed external proportions remain visual proxies pending samples.
Measure cable outside diameter
Measure over the finished outer jacket. Choose a clamping range that contains that diameter; do not select from conductor cross-section.
Identify the mounting thread
Use the complete designation, such as M20 × 1.5, PG13.5 or 1/2 NPT. Similar-looking threads are not automatically interchangeable.

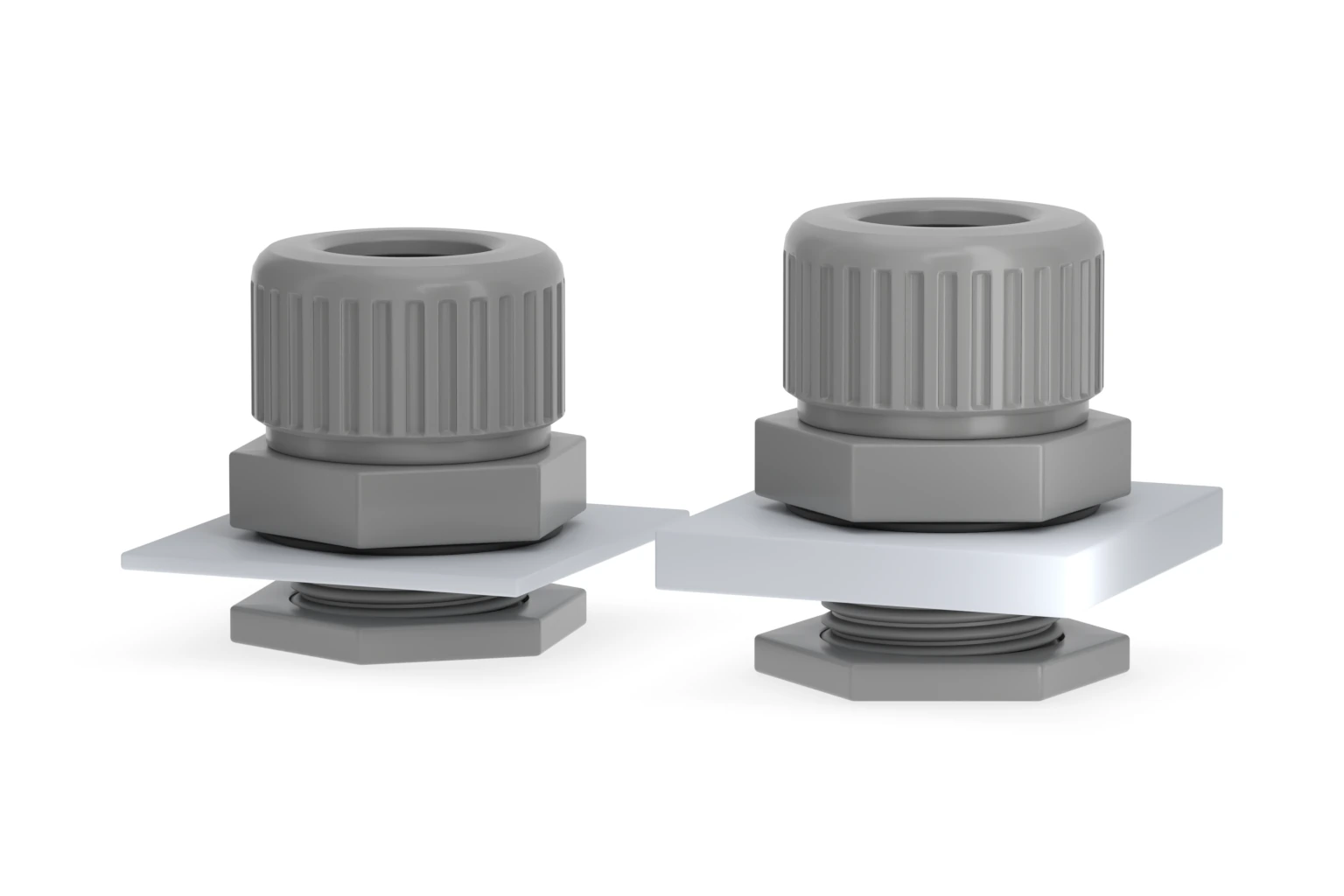

Check thread length
Confirm panel thickness, thread engagement and mounting space. Standard and extended-thread rows can share the same cable range.
Ordinary single-cable glands
A-type and B-type catalogue constructions
B-type
The main listed range uses an integrated body and clamping structure. Metric, PG, NPT and G/PF rows include standard and extended-thread variants.
A-type
The catalogue shows separate assembly components. It is still an end-fed ordinary gland, not a retrofit split gland that closes around an already terminated cable.
Ordering
Request a nylon cable gland match
Send the cable outside diameter, mounting thread or enclosure drawing, panel thickness, colour, quantity and destination. The fields below carry into the Termnex enquiry form.
Frequently asked questions
Nylon cable gland FAQ
Are nylon cable glands and plastic cable glands the same thing?
Plastic cable gland is the broader buyer term. This range uses PA66 nylon bodies, so nylon cable gland is the more specific description.
How do I choose a nylon cable gland size?
Start with the cable outside diameter, then match the enclosure thread and confirm that the listed thread length suits the mounting arrangement.
Does an M20 cable gland fit a 20 mm cable?
No. M20 identifies the mounting thread. Each M20 row has its own cable clamping range.
What is the difference between standard and long-thread models?
The mounting thread length changes. Check panel thickness, required thread engagement and available internal space rather than choosing the longer version automatically.
Are these nylon cable glands IP68 certified?
The source catalogue prints IP68-10 at family level. The applicable test scope and model-matched documents must be confirmed for the selected model before ordering.
Is the A-type construction a split cable gland?
No. It is assembled from separate components but still installs from the cable end. It is not a retrofit gland for an already terminated cable.
