One gland entry · multiple separate cables

Multi-Hole Cable Glands

Route two, three or four separate cables through one threaded enclosure entry. Compare nylon and nickel-plated brass multi cable glands by hole count, mounting thread and the cable field printed in the supplier catalogue.

Browse 2–4 hole sizesSend cable details
156 listed optionsH2–H4 catalogue rows
Nylon + brassTwo body-material routes
Metric · PG · G · NPTSystems vary by material
CE + RoHSCompliance status confirmed by model

Start with cable quantity

Choose the insert by hole count, not by thread alone

A multi-hole cable gland uses one body and a seal with several openings. It is useful when separate small cables must share one enclosure entry. It is not a split cable gland: the cables still pass through the insert during assembly.

The workbook language supports both multi hole cable gland and cable gland for multiple cables. On this page, H2, H3 and H4 mean two, three and four openings.

Two-hole, three-hole and four-hole nylon cable glands shown side by side

Multi-hole cable gland size chart

Browse 156 H2–H4 catalogue configurations

The table contains 78 nylon and 78 nickel-plated-brass rows transcribed from the supplier catalogues. H5–H8 and flat-hole inserts remain catalogue/RFQ options rather than being mixed into this first product route.

2 holes48 rows · nylon and brass3 holes48 rows · nylon and brass4 holes60 rows · nylon and brass5–8 / flatCatalogue enquiry only

156 matching catalogue rows

No row matches every selected filter. Clear one filter or send the cable and enclosure details for a size check.


Multi-hole cable gland catalogue fields — dimensions in millimetres
Model Material Holes Thread Printed cable field Thread Ø Thread length Spanner A/F Catalogue pack Enquire
MGA12-H2-03 Nylon 2 M12x1.5 1.2-3 mm 12 8 18/19 50 Ask
MGA16-H2-04 Nylon 2 M16x1.5 1.5-4 mm 16 15 22/22 50 Ask
MGA20-H2-06 Nylon 2 M20x1.5 3-6 mm 20 15 27/27 50 Ask
MGA25-H2-6.5 Nylon 2 M25x1.5 3-6.5 mm 25 15 33/33 50 Ask
MGA25-H2-08 Nylon 2 M25x1.5 4-8 mm 25 15 33/33 50 Ask
MGA25-H2-09 Nylon 2 M25x1.5 5-9 mm 25 15 33/33 50 Ask
MGA32-H2-10 Nylon 2 M32x1.5 6-10 mm 32 15 41/42 20 Ask
MGA32-H2-11.5 Nylon 2 M32x1.5 7.5-11.5 mm 32 15 41/42 20 Ask
MGA40-H2-13 Nylon 2 M40x1.5 7-13 mm 40 20 50/52 10 Ask
MGA63-H2-17 Nylon 2 M63x1.5 12-17 mm 63 25 75/75 10 Ask
PGA7-H2-03 Nylon 2 PG7 1.2-3 mm 12.5 8.5 17/19 50 Ask
PGA9-H2-03 Nylon 2 PG9 1.2-3 mm 15.2 8.5 22/19 50 Ask
PGA11-H2-04 Nylon 2 PG11 1.5-4 mm 18.6 10 24/22 50 Ask
PGA13.5-H2-05 Nylon 2 PG13.5 2.5-5 mm 20.4 10 27/24 50 Ask
PGA16-H2-06 Nylon 2 PG16 3-6 mm 22.5 10.8 30/27 50 Ask
PGA21-H2-6.5 Nylon 2 PG21 3-6.5 mm 28.3 12 36/33 50 Ask
PGA21-H2-08 Nylon 2 PG21 4-8 mm 28.3 12 36/33 50 Ask
PGA21-H2-08 Nylon 2 PG21 5-9 mm 28.3 12 36/33 50 Ask
PGA29-H2-10 Nylon 2 PG29 6-10 mm 37 12 46/41 20 Ask
PGA29-H2-11.5 Nylon 2 PG29 7.5-11.5 mm 37 12 46/41 20 Ask
PGA36-H2-13 Nylon 2 PG36 7-13 mm 47 14 57/52 10 Ask
PGA48-H2-17 Nylon 2 PG48 12-17 mm 59.3 18.2 70/75 10 Ask
MGA12-H3-2.6 Nylon 3 M12x1.5 1-2.6 mm 12 8.5 18/19 50 Ask
MGA16-H3-04 Nylon 3 M16x1.5 1.5-4 mm 16 15 22/22 50 Ask
MGA20S-H3-05 Nylon 3 M20x1.5 2-5 mm 20 10 24/24 50 Ask
MGA20-H3-05 Nylon 3 M20x1.5 2-5 mm 20 15 27/27 50 Ask
MGA22-H3-05 Nylon 3 M22x1.5 2-5 mm 22 10 27/27 50 Ask
MGA25-H3-05 Nylon 3 M25x1.5 2-5 mm 25 15 33/33 50 Ask
MGA25-H3-08 Nylon 3 M25x1.5 4-8 mm 25 15 33/33 50 Ask
MGA32-H3-10 Nylon 3 M32x1.5 6-10 mm 32 15 41/42 20 Ask
MGA40-H3-11 Nylon 3 M40x1.5 7-11 mm 40 20 50/52 10 Ask
MGA50-H3-12 Nylon 3 M50x1.5 7-12 mm 50 22 62/62 10 Ask
MGA63-H3-13 Nylon 3 M63x1.5 8-13 mm 63 25 75/75 10 Ask
PGA7-H3-2.6 Nylon 3 PG7 1-2.6 mm 12.5 8.5 17/19 50 Ask
PGA9-H3-2.6 Nylon 3 PG9 1-2.6 mm 15.2 8.5 22/19 50 Ask
PGA11-H3-04 Nylon 3 PG11 1.5-4 mm 18.6 10 24/22 50 Ask
PGA13.5-H3-05 Nylon 3 PG13.5 2-5 mm 20.4 10 27/24 50 Ask
PGA16-H3-05 Nylon 3 PG16 2-5 mm 22.5 10.8 30/27 50 Ask
PGA21-H3-05 Nylon 3 PG21 2-5 mm 28.3 12 36/33 50 Ask
PGA21-H3-08 Nylon 3 PG21 4-8 mm 28.3 12 36/33 50 Ask
PGA29-H3-10 Nylon 3 PG29 6-10 mm 37 12 46/41 20 Ask
PGA36-H3-11 Nylon 3 PG36 7-11 mm 47 14 57/52 10 Ask
PGA42-H3-12 Nylon 3 PG42 7-12 mm 54 15 64/62 10 Ask
PGA48-H3-13 Nylon 3 PG48 8-13 mm 59.3 18 70/65 10 Ask
MGA12-H4-2.3 Nylon 4 M12x1.5 1-2.3 mm 12 8.5 18/19 50 Ask
MGA16-H4-3.2 Nylon 4 M16x1.5 1-3.2 mm 16 15 22/22 50 Ask
MGA20S-H4-04 Nylon 4 M20x1.5 1.5-4 mm 20 10 24/24 50 Ask
MGA20-H4-2.5 Nylon 4 M20x1.5 1-2.5 mm 20 15 27/27 50 Ask
MGA20-H4-3.5 Nylon 4 M20x1.5 1-3.5 mm 20 15 27/27 50 Ask
MGA20-H4-4.5 Nylon 4 M20x1.5 2-4.5 mm 20 15 27/27 50 Ask
MGA22-H4-2.5 Nylon 4 M22x1.5 1-2.5 mm 22 15 27/27 50 Ask
MGA22-H4-3.5 Nylon 4 M22x1.5 1-3.5 mm 22 15 27/27 50 Ask
MGA22-H4-4.5 Nylon 4 M22x1.5 2-4.5 mm 22 15 27/27 50 Ask
MGA25-H4-05 Nylon 4 M25x1.5 2-5 mm 25 15 33/33 50 Ask
MGA25-H4-06 Nylon 4 M25x1.5 3-6 mm 25 15 33/33 50 Ask
MGA25-H4-07 Nylon 4 M25x1.5 3-7 mm 25 15 33/33 50 Ask
MGA25-H4-08 Nylon 4 M25x1.5 4-8 mm 25 15 33/33 50 Ask
MGA25-H4-09 Nylon 4 M25x1.5 5-9 mm 25 15 33/33 50 Ask
MGA32-H4-07 Nylon 4 M32x1.5 3-7 mm 32 15 41/42 20 Ask
MGA32-H4-09 Nylon 4 M32x1.5 5-9 mm 32 15 41/42 20 Ask
MGA40-H4-11 Nylon 4 M40x1.5 7-11 mm 40 20 50/52 10 Ask
MGA40-H4-12 Nylon 4 M40x1.5 8-12 mm 40 20 50/52 10 Ask
PGA7-H4-2.3 Nylon 4 PG7 1-2.3 mm 12.5 8.5 17/19 50 Ask
PGA9-H4-2.3 Nylon 4 PG9 1-2.3 mm 15.2 8.5 22/19 50 Ask
PGA11-H4-3.2 Nylon 4 PG11 1-3.2 mm 18.6 10 24/22 50 Ask
PGA13.5-H4-04 Nylon 4 PG13.5 1.5-4 mm 20.4 10 27/24 50 Ask
PGA16-H4-2.5 Nylon 4 PG16 1-2.5 mm 22.5 10.8 30/27 50 Ask
PGA16-H4-3.5 Nylon 4 PG16 1-3.5 mm 22.5 10.8 30/27 50 Ask
PGA16-H4-4.5 Nylon 4 PG16 2-4.5 mm 22.5 10.8 30/27 50 Ask
PGA21-H4-05 Nylon 4 PG21 2-5 mm 28.3 12 36/33 50 Ask
PGA21-H4-06 Nylon 4 PG21 3-6 mm 28.3 12 36/33 50 Ask
PGA21-H4-07 Nylon 4 PG21 3-7 mm 28.3 12 36/33 50 Ask
PGA21-H4-08 Nylon 4 PG21 4-8 mm 28.3 12 36/33 50 Ask
PGA21-H4-09 Nylon 4 PG21 5-9 mm 28.3 12 36/33 50 Ask
PGA29-H4-07 Nylon 4 PG29 3-7 mm 37 12 46/41 20 Ask
PGA29-H4-09 Nylon 4 PG29 5-9 mm 37 12 46/41 20 Ask
PGA36-H4-11 Nylon 4 PG36 7-11 mm 47 14 57/52 10 Ask
PGA36-H4-12 Nylon 4 PG36 8-12 mm 47 14 57/52 10 Ask
M12-H2 Nickel-plated brass 2 M12x1.5 3-1.2 mm 12 7 14 Confirm Ask
M16-H2 Nickel-plated brass 2 M16x1.5 4-1.6 mm 16 8 18 Confirm Ask
M18-H2 Nickel-plated brass 2 M18x1.5 3.5-2 mm 18 8 20 Confirm Ask
M20A-H2 Nickel-plated brass 2 M20x1.5 5.3-1.5 mm 20 8 22 Confirm Ask
M20B-H2 Nickel-plated brass 2 M20x1.5 3.5-2 mm 20 8 22 Confirm Ask
M22-H2 Nickel-plated brass 2 M22x1.5 6-2.5 mm 22 8 24 Confirm Ask
M25-H2 Nickel-plated brass 2 M25x1.5 8.7-4 mm 25 9 30 Confirm Ask
M32-H2 Nickel-plated brass 2 M32x1.5 10-5 mm 32 9 35 Confirm Ask
PG7-H2 Nickel-plated brass 2 PG7 3-1.2 mm 12.5 8 14 Confirm Ask
PG9-H2 Nickel-plated brass 2 PG9 4-1.6 mm 15.2 8 17 Confirm Ask
PG11-H2 Nickel-plated brass 2 PG11 3.5-2 mm 18.6 8 20 Confirm Ask
PG13.5-H2 Nickel-plated brass 2 PG13.5 5.3-1.5 mm 20.4 8 22 Confirm Ask
PG16-H2 Nickel-plated brass 2 PG16 6-2.5 mm 22.5 8 24 Confirm Ask
PG21-H2 Nickel-plated brass 2 PG21 8.7-4.5 mm 28.3 9 30 Confirm Ask
PG29-H2 Nickel-plated brass 2 PG29 10-5 mm 37 10 40 Confirm Ask
G1/4-H2 Nickel-plated brass 2 G1/4 3-1.2 mm 13.1 7 14 Confirm Ask
G3/8-H2 Nickel-plated brass 2 G3/8 4-1.6 mm 16.6 8 18 Confirm Ask
G1/2A-H2 Nickel-plated brass 2 G1/2 3.5-2 mm 20.9 8 22 Confirm Ask
G1/2B-H2 Nickel-plated brass 2 G1/2 5.3-1.5 mm 20.9 8 22 Confirm Ask
G3/4-H2 Nickel-plated brass 2 G3/4 8.7-4.5 mm 26.4 9 30 Confirm Ask
G1-H2 Nickel-plated brass 2 G1 10-5 mm 33.2 10 35 Confirm Ask
N3/8-H2 Nickel-plated brass 2 NPT3/8 4-1.6 mm 17 8 18 Confirm Ask
N1/2A-H2 Nickel-plated brass 2 NPT1/2 3.5-2 mm 21.2 8 22 Confirm Ask
N1/2B-H2 Nickel-plated brass 2 NPT1/2 5.3-1.5 mm 21.2 8 22 Confirm Ask
N3/4-H2 Nickel-plated brass 2 NPT3/4 8.7-4.5 mm 26.5 9 30 Confirm Ask
N1-H2 Nickel-plated brass 2 NPT1 10-5 mm 33.2 10 35 Confirm Ask
M12-H3 Nickel-plated brass 3 M12x1.5 2.6-1.2 mm 12 7 14 Confirm Ask
M16-H3 Nickel-plated brass 3 M16x1.5 2.6-1.2 mm 16 8 18 Confirm Ask
M18-H3 Nickel-plated brass 3 M18x1.5 4-1.6 mm 18 8 20 Confirm Ask
M20A-H3 Nickel-plated brass 3 M20x1.5 5-2 mm 20 8 22 Confirm Ask
M20B-H3 Nickel-plated brass 3 M20x1.5 3.5-1.5 mm 20 8 22 Confirm Ask
M22-H3 Nickel-plated brass 3 M22x1.5 3.5-1.5 mm 22 8 24 Confirm Ask
M25-H3 Nickel-plated brass 3 M25x1.5 8-4 mm 25 9 30 Confirm Ask
M32-H3 Nickel-plated brass 3 M32x1.5 10-5 mm 32 9 35 Confirm Ask
PG7-H3 Nickel-plated brass 3 PG7 2.6-1.2 mm 12.5 8 14 Confirm Ask
PG9-H3 Nickel-plated brass 3 PG9 2.6-1.2 mm 15.2 8 17 Confirm Ask
PG11-H3 Nickel-plated brass 3 PG11 4-1.6 mm 18.6 8 20 Confirm Ask
PG13.5-H3 Nickel-plated brass 3 PG13.5 5-2 mm 20.4 8 22 Confirm Ask
PG16-H3 Nickel-plated brass 3 PG16 3.5-1.5 mm 22.5 8 24 Confirm Ask
PG21-H3 Nickel-plated brass 3 PG21 5-2 mm 28.3 9 30 Confirm Ask
PG29-H3 Nickel-plated brass 3 PG29 10-5 mm 37 10 40 Confirm Ask
G1/4-H3 Nickel-plated brass 3 G1/4 2.6-1.2 mm 13.1 7 14 Confirm Ask
G3/8-H3 Nickel-plated brass 3 G3/8 4-1.6 mm 16.6 8 18 Confirm Ask
G1/2A-H3 Nickel-plated brass 3 G1/2 5-2 mm 20.9 8 22 Confirm Ask
G1/2B-H3 Nickel-plated brass 3 G1/2 3.5-1.5 mm 20.9 8 22 Confirm Ask
G3/4-H3 Nickel-plated brass 3 G3/4 8-4 mm 26.4 9 30 Confirm Ask
G1-H3 Nickel-plated brass 3 G1 10-5 mm 33.2 10 35 Confirm Ask
N3/8-H3 Nickel-plated brass 3 NPT3/8 4-1.6 mm 17 8 18 Confirm Ask
N1/2A-H3 Nickel-plated brass 3 NPT1/2 3.5-1.5 mm 21.2 8 22 Confirm Ask
N1/2B-H3 Nickel-plated brass 3 NPT1/2 5-2 mm 21.2 8 22 Confirm Ask
N3/4-H3 Nickel-plated brass 3 NPT3/4 8-4 mm 26.5 9 30 Confirm Ask
N1-H3 Nickel-plated brass 3 NPT1 10-5 mm 33.2 10 35 Confirm Ask
M12-H4 Nickel-plated brass 4 M12x1.5 2.3-1 mm 12 7 14 Confirm Ask
M16-H4 Nickel-plated brass 4 M16x1.5 2.3-1 mm 16 8 18 Confirm Ask
M18-H4 Nickel-plated brass 4 M18x1.5 3-1.2 mm 18 8 20 Confirm Ask
M20A-H4 Nickel-plated brass 4 M20x1.5 4.2-1.7 mm 20 8 22 Confirm Ask
M20B-H4 Nickel-plated brass 4 M20x1.5 3.5-1.5 mm 20 8 22 Confirm Ask
M22-H4 Nickel-plated brass 4 M22x1.5 4.5-2 mm 22 8 24 Confirm Ask
M25-H4 Nickel-plated brass 4 M25x1.5 5-2 mm 25 9 30 Confirm Ask
M32-H4 Nickel-plated brass 4 M32x1.5 9-4.5 mm 32 9 35 Confirm Ask
PG7-H4 Nickel-plated brass 4 PG7 2.3-1 mm 12.5 8 14 Confirm Ask
PG9-H4 Nickel-plated brass 4 PG9 2.3-1 mm 15.2 8 17 Confirm Ask
PG11-H4 Nickel-plated brass 4 PG11 3-1.2 mm 18.6 8 20 Confirm Ask
PG13.5-H4 Nickel-plated brass 4 PG13.5 4.2-1.7 mm 20.4 8 22 Confirm Ask
PG16-H4 Nickel-plated brass 4 PG16 4.5-2 mm 22.5 8 24 Confirm Ask
PG21-H4 Nickel-plated brass 4 PG21 7-3.5 mm 28.3 9 30 Confirm Ask
PG29-H4 Nickel-plated brass 4 PG29 9-4.5 mm 37 10 40 Confirm Ask
G1/4-H4 Nickel-plated brass 4 G1/4 2.3-1 mm 13.1 7 14 Confirm Ask
G3/8-H4 Nickel-plated brass 4 G3/8 3-1.2 mm 16.6 8 18 Confirm Ask
G1/2A-H4 Nickel-plated brass 4 G1/2 3.5-1.5 mm 20.9 8 22 Confirm Ask
G1/2B-H4 Nickel-plated brass 4 G1/2 4.5-2 mm 20.9 8 22 Confirm Ask
G3/4-H4 Nickel-plated brass 4 G3/4 7-3.5 mm 26.4 9 30 Confirm Ask
G1-H4 Nickel-plated brass 4 G1 9-4.5 mm 33.2 10 35 Confirm Ask
N3/8-H4 Nickel-plated brass 4 NPT3/8 2.3-1 mm 17 8 18 Confirm Ask
N1/2A-H4 Nickel-plated brass 4 NPT1/2 3.5-1.5 mm 21.2 8 22 Confirm Ask
N1/2B-H4 Nickel-plated brass 4 NPT1/2 4.5-2 mm 21.2 8 22 Confirm Ask
N3/4-H4 Nickel-plated brass 4 NPT3/4 7-3.5 mm 26.5 9 30 Confirm Ask
N1-H4 Nickel-plated brass 4 NPT1 9-4.5 mm 33.2 10 35 Confirm Ask

Important: the catalogue field is preserved exactly. Nylon values are not claimed as a confirmed per-hole clamping range. Metal values such as “8.7-4” are treated as a printed hole-diameter combination, not rewritten as 4–8.7 mm. Catalogue pack is not confirmed MOQ or stock.

Two material routes

Nylon and nickel-plated brass multi cable glands

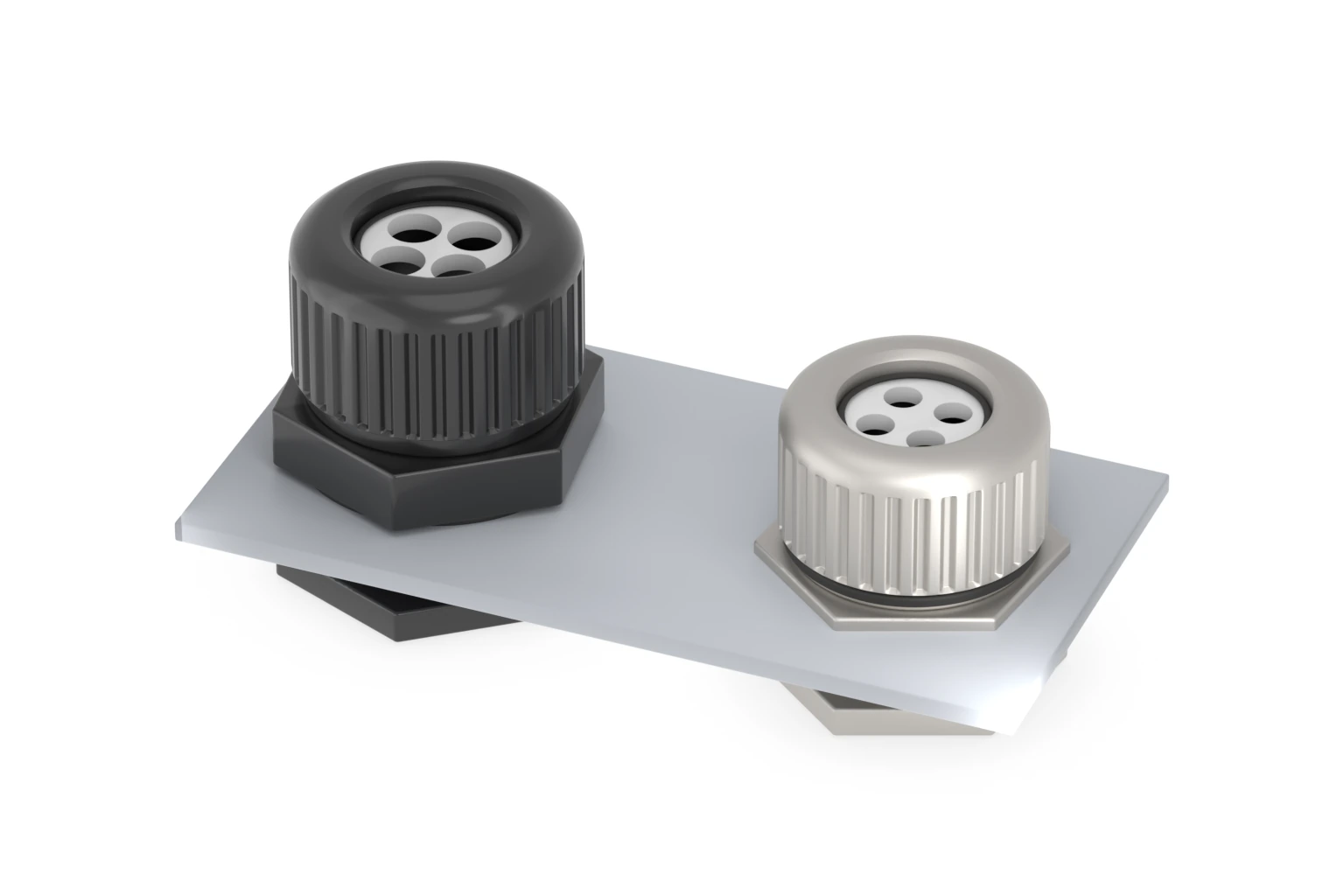

Black nylon and nickel-plated brass four-hole cable glands installed in one panel
Choose material separately from hole count.Nylon and nickel-plated brass bodies share the multi-cable routing idea, but have separate size tables and mounting-thread coverage.

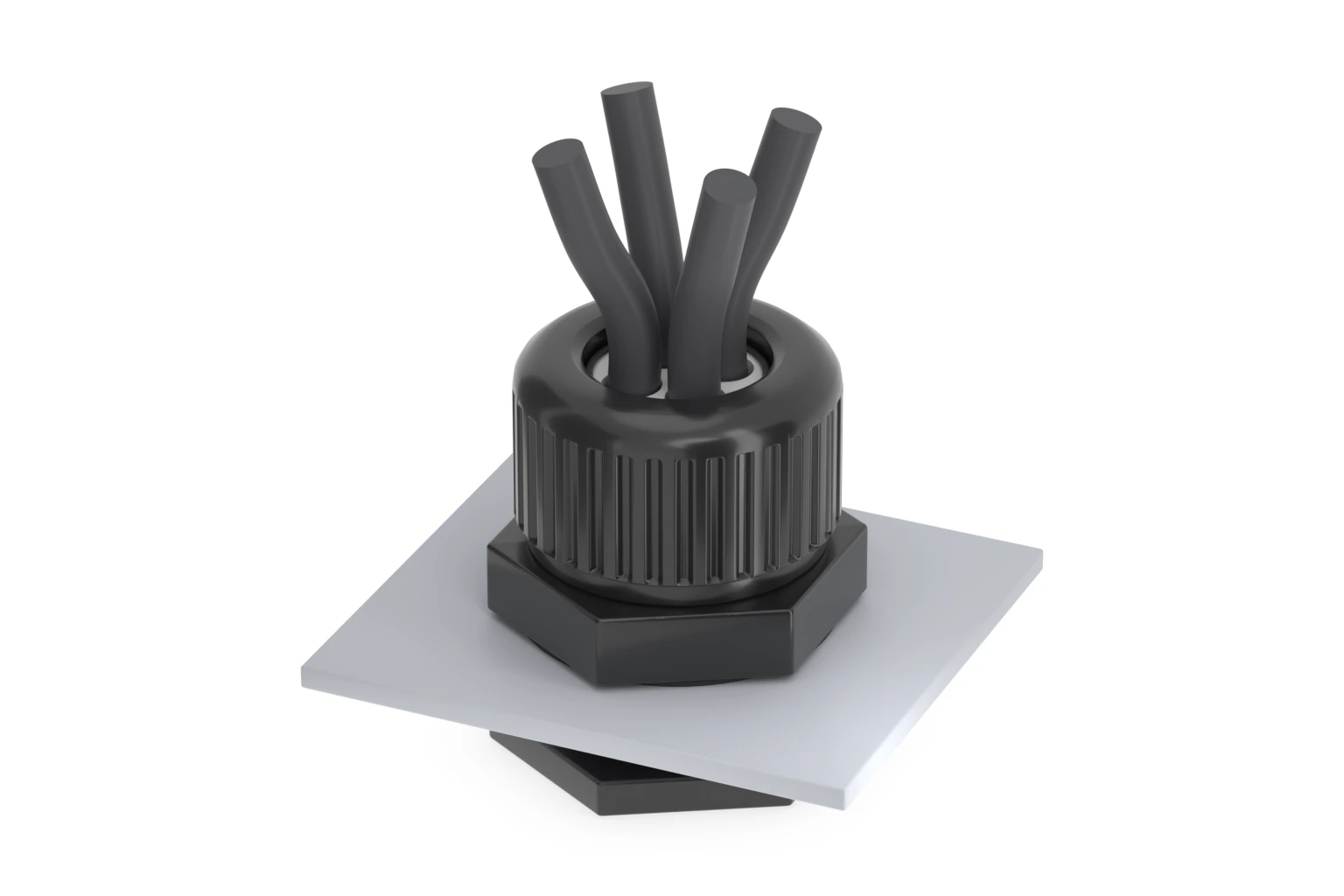

Four separate cables passing through one four-hole cable gland installed in a panel
Keep separate cables in separate openings.The insert geometry must match cable quantity and actual outside diameters; unused or mismatched openings can compromise the intended entry seal.

Rendered examples explain the product route. Hole offsets, rendered hole diameters and unmeasured external proportions are visual proxies pending samples.

Selection order

Match every cable before matching the enclosure

01

Count separate cables

Choose H2, H3 or H4 from the number of cables that need to pass through the same entry.

02

Measure every cable OD

Send the finished outside diameter of each cable. Do not assume one printed field applies identically to every opening.

03

Confirm thread and material

Match the complete mounting thread, usable engagement and body material to the enclosure and environment.

Ordering

Request a multi-hole cable gland match

Send the number of cables, each cable outside diameter, mounting thread or enclosure drawing, panel thickness, preferred material, quantity and destination.

Frequently asked questions

Multi-hole cable gland FAQ

What is a multi-hole cable gland?

It is one threaded cable-gland body with a sealing insert containing multiple openings, allowing separate cables to share one enclosure entry.

Is a multi-hole cable gland the same as a split cable gland?

No. A multi-hole gland routes several cables through several openings. A true split gland opens around an already terminated cable; this range is not presented as split.

Can I put multiple cables through a standard single-hole gland?

Do not assume so. A seal designed for one cable may not seal correctly around several cable jackets. Use an insert designed for the cable count and diameters.

Does the printed cable field apply to every hole?

That interpretation is not yet confirmed for the nylon catalogue rows. Send every cable outside diameter so the insert can be matched before quotation.

What does “8.7-4” mean on a metal two-hole model?

It is preserved as the supplier’s printed notation and appears consistent with two different hole diameters. It is not treated as a 4–8.7 mm range without supplier confirmation.

Are 5, 6, 7 and 8-hole inserts available?

The supplier catalogue includes additional hole counts, but this page lists H2–H4. Higher counts and flat-hole inserts are handled as catalogue enquiries.
