HE1008
HE1008 Insulated Bootlace Ferrule: 1 mm² / 18 AWG Red, 8 mm Pin
The HE1008 wire ferrule is a single-wire insulated bootlace ferrule or cord end terminal for terminating 1 mm² stranded conductor before it enters a screw or spring terminal.
- Wire size1 mm² / catalogue reference 18 AWG
- Pin length8 mm / 0.31 in
- CollarRed, DIN colour configuration
- Rating17 A catalogue maximum
- ComplianceUL Listed to UL 486F; certificate supplied with quotation
- Pack1,000 pieces
HE1008 wire ferrule dimensions and specifications
| Property | HE1008 value |
|---|---|
| Product type | Single-wire insulated ferrule / bootlace ferrule |
| Conductor cross-section | 1 mm² |
| Catalogue AWG reference | 18 AWG |
| Pin / barrel length (F) | 8.0 mm / 0.31 in |
| Overall length (L) | 14.5 mm / 0.57 in |
| Collar width (W) | 3.0 mm / 0.12 in |
| Collar height (H) | 6.3 mm / 0.25 in |
| Barrel outside diameter (D) | 1.8 mm / 0.07 in |
| Barrel inside diameter (C) | 1.4 mm / 0.06 in |
| Collar colour shown | Red |
| Alternative factory colours | Yellow; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 17 A |
| Compliance | UL Listed to UL 486F; certificate supplied with quotation |
| Pack quantity | 1,000 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Select HE1008 from the conductor’s marked 1 mm² cross-section first, then compare an 8 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

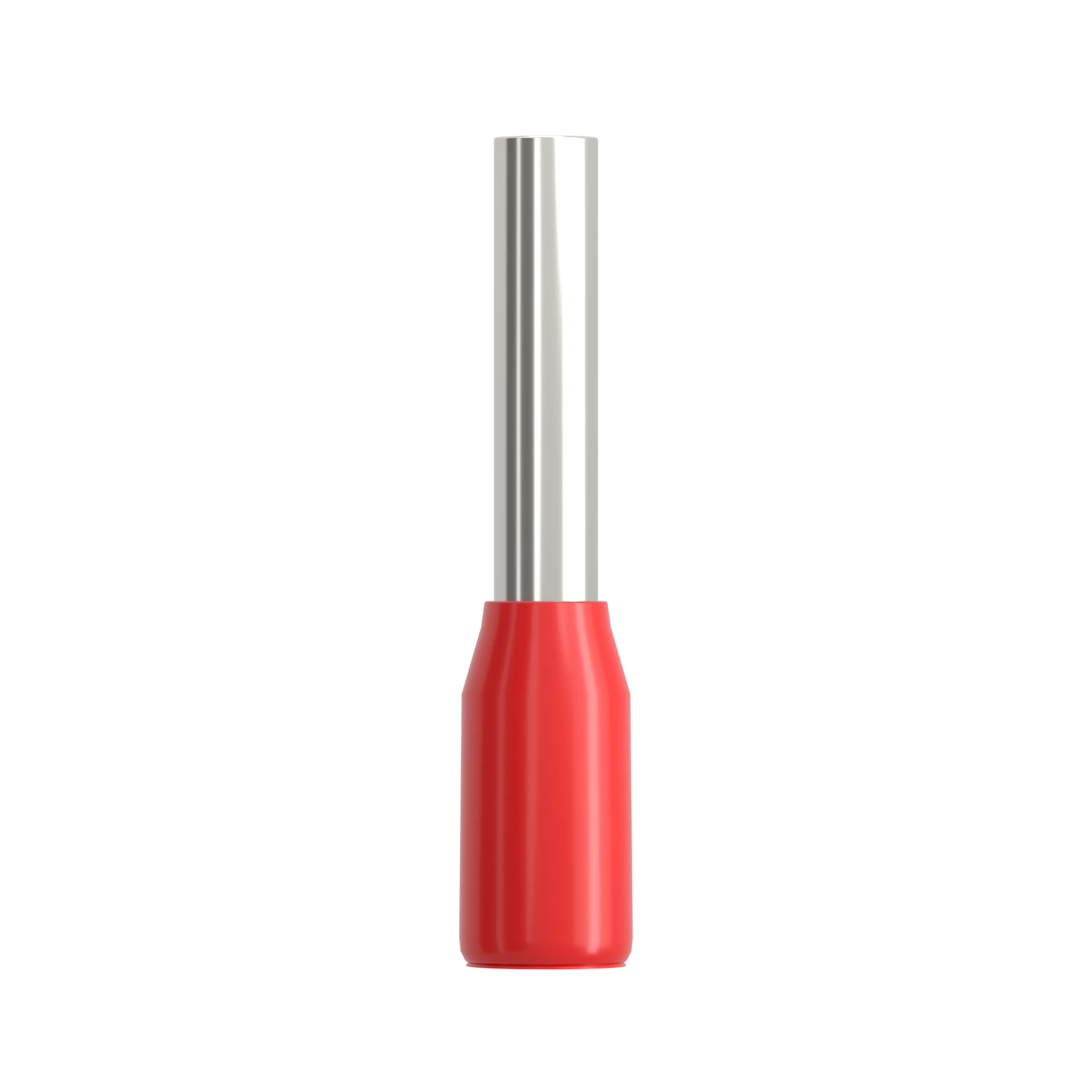

1 mm² red ferrule with an 8 mm pin
The model code is direct: 10 identifies the 1 mm² conductor size and 8 identifies the nominal pin length in millimetres. HE1008 suits terminals that accept an 8 mm pin.
UL 486F and ordering
HE1008 is UL Listed to UL 486F, and the listing covers this exact model. The official UL certificate and file records are supplied with the formal quotation pack. Project approval still depends on the terminal, crimp tool, conductor and installation requirements specified by the panel builder.
Request HE1008 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HE1008 mean?
HE identifies the insulated single-wire ferrule series. The 10 size code identifies the 1 mm² conductor size and 8 denotes an 8 mm nominal pin length.
Is red the only HE1008 collar colour?
No. The shown Termnex configuration is red. Factory data also lists yellow, so specify the required colour with the order.
Is HE1008 UL Listed?
Yes. HE1008 is UL Listed to UL 486F. The official UL certificate and file records are supplied with the formal quotation pack. Project approval still depends on the terminal, tool and conductor specified.
Is HE1008 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HE1008?
SN-06WF covers the 1 mm² range that includes HE1008. Verify the finished crimp against the conductor and terminal requirements.
Is HE1008 sold individually?
No. The standard factory pack contains 1,000 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
