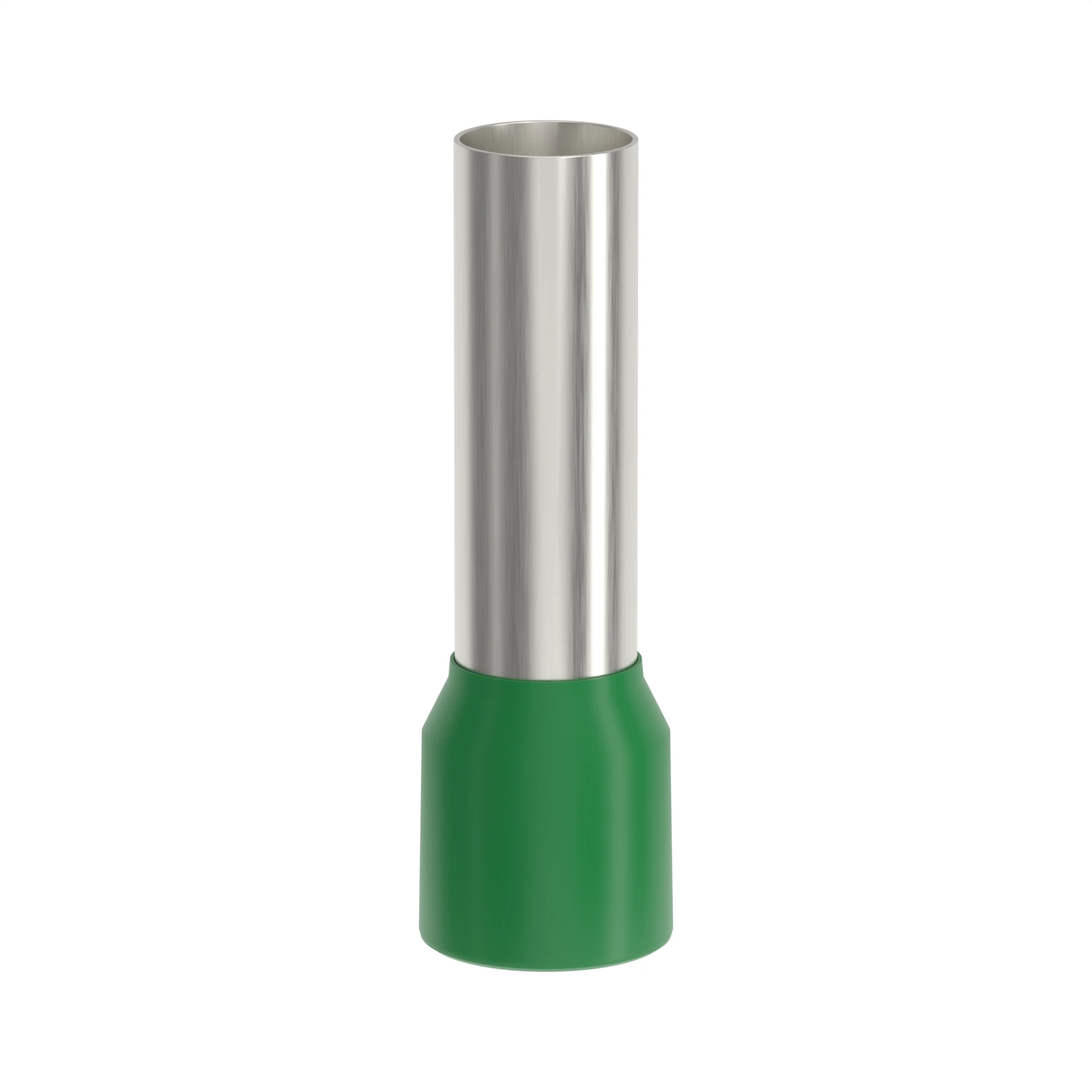

HE16-18 Insulated Bootlace Ferrule: 16 mm² / 6 AWG Green, 18 mm Pin
The HE16-18 is a green 16 mm insulated bootlace ferrule, also listed as a wire ferrule or cord end terminal, for terminating 16 mm² / 6 AWG stranded conductor before it enters a screw or spring terminal.
- Wire size16 mm² / catalogue reference 6 AWG
- Pin length18 mm / 0.71 in
- CollarGreen as shown; DIN 47002 assigns Blue at 16 mm²
- Rating95 A catalogue maximum
- ComplianceCE and RoHS; not UL Listed
- Pack500 pieces
HE16-18 wire ferrule dimensions and specifications
| Property | HE16-18 value |
|---|---|
| Product type | Single-wire insulated ferrule / bootlace ferrule |
| Conductor cross-section | 16 mm² |
| Catalogue AWG reference | 6 AWG |
| Pin / barrel length (F) | 18.0 mm / 0.71 in |
| Overall length (L) | 28.0 mm / 1.10 in |
| Collar width (W) | 8.7 mm / 0.34 in |
| Collar height (H) | 10.0 mm / 0.39 in |
| Barrel outside diameter (D) | 6.2 mm / 0.24 in |
| Barrel inside diameter (C) | 5.8 mm / 0.23 in |
| Collar colour shown | Green |
| Alternative factory colours | White or Blue; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 95 A |
| Compliance | CE and RoHS; not UL Listed |
| Pack quantity | 500 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Use the wire ferrule size and colour guide when comparing catalogue labels. Select HE16-18 from the conductor’s marked 16 mm² cross-section first, then compare an 18 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

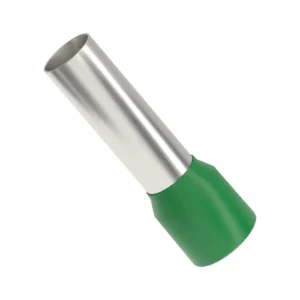

16 mm green bootlace ferrule, 16 mm² / 6 AWG, with an 18 mm pin
The model code is direct: 16 identifies the 16 mm² conductor size and 18 identifies the nominal pin length in millimetres. HE16-18 suits terminals that accept an 18 mm pin. Compare every pin length and series at this cross-section on the 16 mm² bootlace ferrule page. Small quantities of the 16 mm² size are also included in the Termnex wire ferrule kits.
Compliance and ordering
HE16-18 is not UL Listed. The HE series has model-specific UL 486F coverage, and this exact model is outside the current covered-model list. HE16-18 is supplied with CE and RoHS documentation; confirm the required compliance documents with the quotation.
Request HE16-18 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HE16-18 mean?
HE identifies the insulated single-wire ferrule series. The 16 size code identifies the 16 mm² conductor size and 18 denotes an 18 mm nominal pin length.
Is green the only HE16-18 collar colour?
No. The shown Termnex configuration is green. Factory data also lists white or blue, so specify the required colour with the order.
Is HE16-18 UL Listed?
No. HE16-18 is outside the current UL 486F covered-model list. The HE series has model-specific coverage, so do not extend the listing from a neighbouring size.
Is HE16-18 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HE16-18?
HX-35WF covers the 16 mm² range that includes HE16-18. Verify the finished crimp against the conductor and terminal requirements.
Is HE16-18 sold individually?
No. The standard factory pack contains 500 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
