HE2508
HE2508 Insulated Bootlace Ferrule: 2.5 mm² / 14 AWG Blue, 8 mm Pin
The HE2508 wire ferrule is a single-wire insulated bootlace ferrule or cord end terminal for terminating 2.5 mm² stranded conductor before it enters a screw or spring terminal.
- Wire size2.5 mm² / catalogue reference 14 AWG
- Pin length8 mm / 0.31 in
- CollarBlue, DIN colour configuration
- Rating30 A catalogue maximum
- ComplianceUL Listed to UL 486F; certificate supplied with quotation
- Pack1,000 pieces
HE2508 wire ferrule dimensions and specifications
| Property | HE2508 value |
|---|---|
| Product type | Single-wire insulated ferrule / bootlace ferrule |
| Conductor cross-section | 2.5 mm² |
| Catalogue AWG reference | 14 AWG |
| Pin / barrel length (F) | 8.0 mm / 0.31 in |
| Overall length (L) | 15.4 mm / 0.61 in |
| Collar width (W) | 4.0 mm / 0.16 in |
| Collar height (H) | 7.4 mm / 0.29 in |
| Barrel outside diameter (D) | 2.6 mm / 0.10 in |
| Barrel inside diameter (C) | 2.3 mm / 0.09 in |
| Collar colour shown | Blue |
| Alternative factory colours | Grey; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 30 A |
| Compliance | UL Listed to UL 486F; certificate supplied with quotation |
| Pack quantity | 1,000 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Select HE2508 from the conductor’s marked 2.5 mm² cross-section first, then compare an 8 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

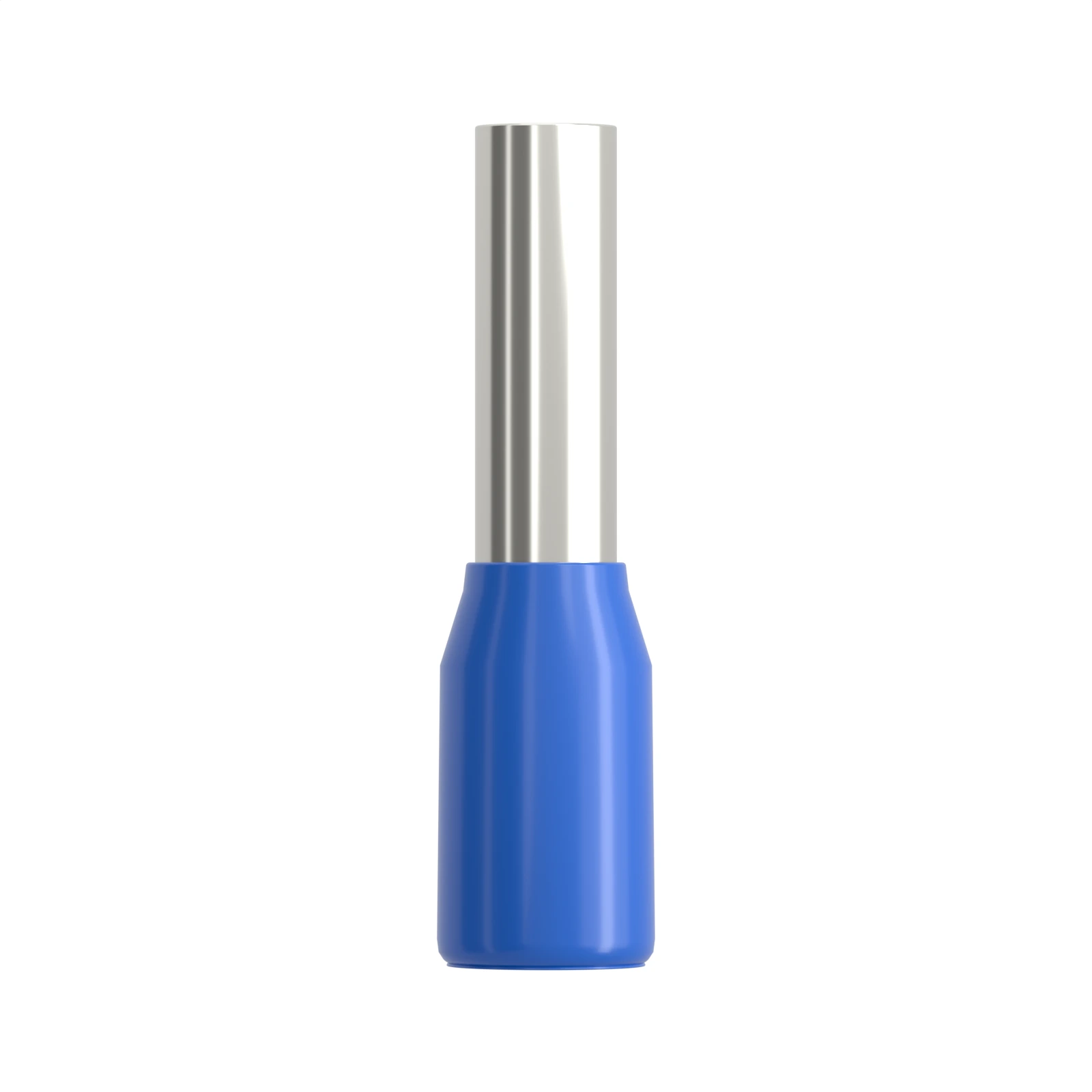

2.5 mm² blue ferrule with an 8 mm pin
The model code is direct: 25 identifies the 2.5 mm² conductor size and 8 identifies the nominal pin length in millimetres. HE2508 suits terminals that accept an 8 mm pin.
UL 486F and ordering
HE2508 is UL Listed to UL 486F, and the listing covers this exact model. The official UL certificate and file records are supplied with the formal quotation pack. Project approval still depends on the terminal, crimp tool, conductor and installation requirements specified by the panel builder.
Request HE2508 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HE2508 mean?
HE identifies the insulated single-wire ferrule series. The 25 size code identifies the 2.5 mm² conductor size and 8 denotes an 8 mm nominal pin length.
Is blue the only HE2508 collar colour?
No. The shown Termnex configuration is blue. Factory data also lists grey, so specify the required colour with the order.
Is HE2508 UL Listed?
Yes. HE2508 is UL Listed to UL 486F. The official UL certificate and file records are supplied with the formal quotation pack. Project approval still depends on the terminal, tool and conductor specified.
Is HE2508 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HE2508?
SN-06WF covers the 2.5 mm² range that includes HE2508. Verify the finished crimp against the conductor and terminal requirements.
Is HE2508 sold individually?
No. The standard factory pack contains 1,000 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
