HE35-18
HE35-18 Insulated Bootlace Ferrule: 35 mm² / 2 AWG Beige, 18 mm Pin

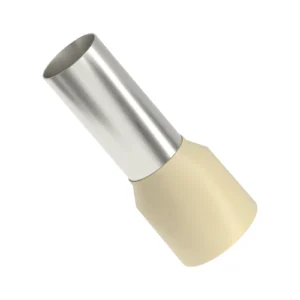

The HE35-18 is a beige 35 mm insulated bootlace ferrule, also listed as a wire ferrule or cord end terminal, for terminating 35 mm² / 2 AWG stranded conductor before it enters a screw or spring terminal.
- Wire size35 mm² / catalogue reference 2 AWG
- Pin length18 mm / 0.71 in
- CollarBeige as shown; DIN 47002 assigns Red at 35 mm²
- Rating170 A catalogue maximum
- ComplianceCE and RoHS; not UL Listed
- Pack200 pieces
HE35-18 wire ferrule dimensions and specifications
| Property | HE35-18 value |
|---|---|
| Product type | Single-wire insulated ferrule / bootlace ferrule |
| Conductor cross-section | 35 mm² |
| Catalogue AWG reference | 2 AWG |
| Pin / barrel length (F) | 18.0 mm / 0.71 in |
| Overall length (L) | 32.0 mm / 1.26 in |
| Collar width (W) | 12.5 mm / 0.49 in |
| Collar height (H) | 14.0 mm / 0.55 in |
| Barrel outside diameter (D) | 8.7 mm / 0.34 in |
| Barrel inside diameter (C) | 8.3 mm / 0.33 in |
| Collar colour shown | Beige |
| Alternative factory colours | Grey or Red; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 170 A |
| Compliance | CE and RoHS; not UL Listed |
| Pack quantity | 200 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Use the wire ferrule size and colour guide when comparing catalogue labels. Select HE35-18 from the conductor’s marked 35 mm² cross-section first, then compare an 18 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

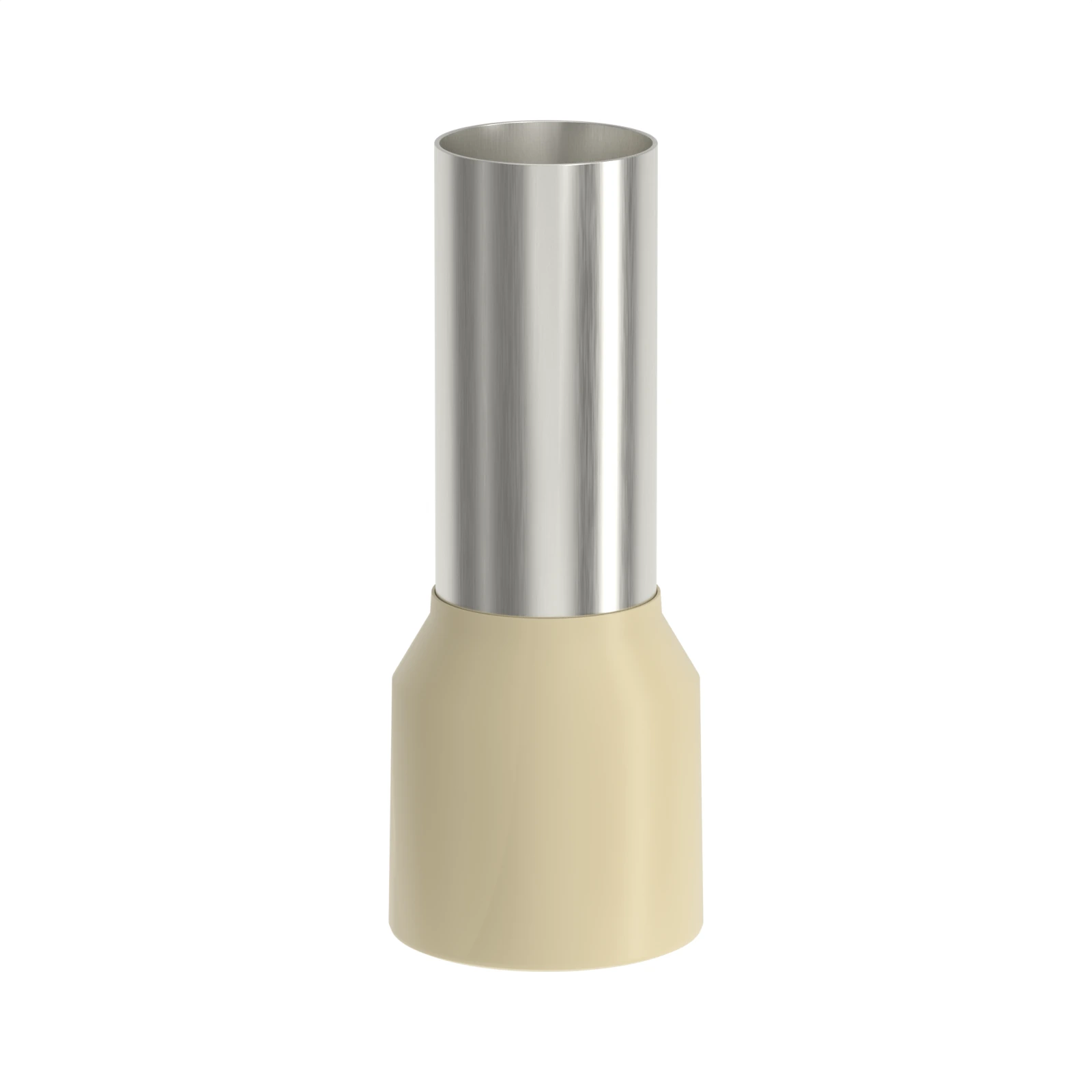

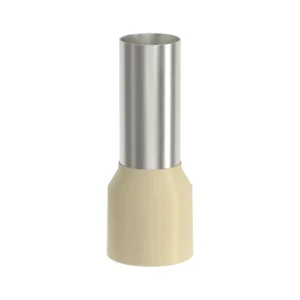

35 mm beige bootlace ferrule, 35 mm² / 2 AWG, with an 18 mm pin
The model code is direct: 35 identifies the 35 mm² conductor size and 18 identifies the nominal pin length in millimetres. HE35-18 suits terminals that accept an 18 mm pin. Compare every pin length and series at this cross-section on the 35 mm² bootlace ferrule page.
Compliance and ordering
HE35-18 is not UL Listed. The HE series has model-specific UL 486F coverage, and this exact model is outside the current covered-model list. HE35-18 is supplied with CE and RoHS documentation; confirm the required compliance documents with the quotation.
Request HE35-18 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HE35-18 mean?
HE identifies the insulated single-wire ferrule series. The 35 size code identifies the 35 mm² conductor size and 18 denotes an 18 mm nominal pin length.
Is beige the only HE35-18 collar colour?
No. The shown Termnex configuration is beige. Factory data also lists grey or red, so specify the required colour with the order.
Is HE35-18 UL Listed?
No. HE35-18 is outside the current UL 486F covered-model list. The HE series has model-specific coverage, so do not extend the listing from a neighbouring size.
Is HE35-18 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HE35-18?
HX-35WF covers the 35 mm² range that includes HE35-18. Verify the finished crimp against the conductor and terminal requirements.
Is HE35-18 sold individually?
No. The standard factory pack contains 200 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
