HEN185-32

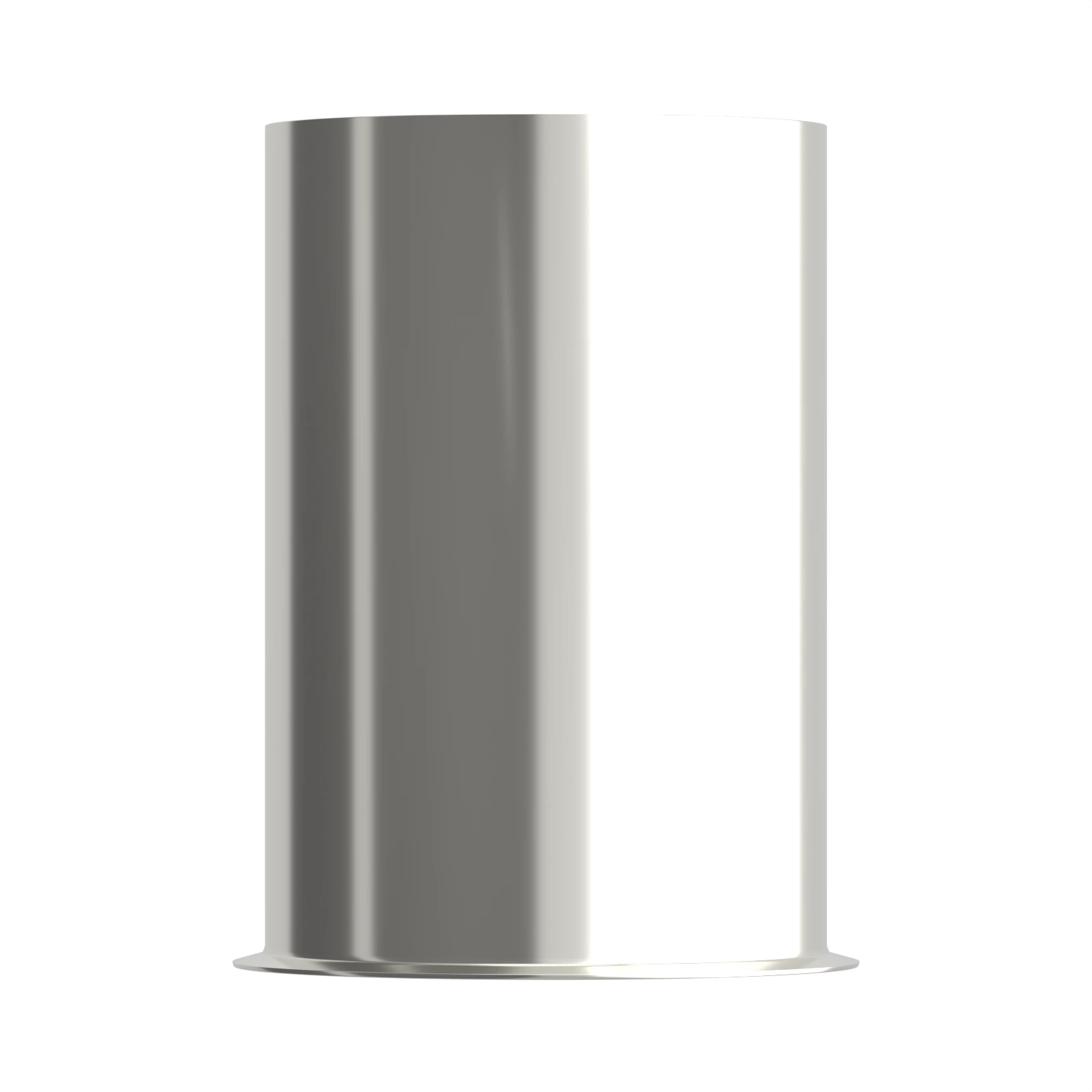

HEN185-32 Non-Insulated Bootlace Ferrule: 185 mm² / 300/350 MCM 32 mm Barrel
The HEN185-32 non-insulated wire ferrule is a bare tin plated copper sleeve for terminating 185 mm² stranded conductor where no insulating collar is required.
- Wire size185 mm² / catalogue reference 300/350 MCM
- Barrel length32 mm / 1.26 in
- CollarNone – bare tin plated sleeve
- Rating445 A catalogue maximum
- ComplianceCE and RoHS; not UL Listed
- Pack50 pieces
HEN185-32 wire ferrule dimensions and specifications
| Property | HEN185-32 value |
|---|---|
| Product type | Non-insulated ferrule / bare bootlace sleeve |
| Conductor cross-section | 185 mm² |
| Catalogue AWG reference | 300/350 MCM |
| Barrel length (F) | 32.0 mm / 1.26 in |
| Overall length (L) | 32.0 mm / 1.26 in |
| Flare outside diameter (W) | 23.9 mm / 0.94 in |
| Barrel outside diameter (D) | 21.4 mm / 0.84 in |
| Barrel inside diameter (C) | 20.2 mm / 0.80 in |
| Barrel material | Copper, tin plated |
| Catalogue current rating | 445 A |
| Compliance | CE and RoHS; not UL Listed |
| Pack quantity | 50 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Select HEN185-32 from the conductor’s marked 185 mm² cross-section first, then compare a 32 mm barrel with the terminal maker’s accepted ferrule and strip-length requirements.
185 mm² bare ferrule with a 32 mm barrel
The model code is direct: 185 identifies the 185 mm² conductor size and 32 identifies the nominal barrel length in millimetres. HEN185-32 suits terminals that accept a 32 mm barrel.
Compliance and ordering
HEN185-32 is not UL Listed. The UL 486F listing covers the HE insulated single-wire series only, and the non-insulated range is outside it. HEN185-32 is supplied with CE and RoHS documentation. If the panel requires a UL Listed ferrule, specify the equivalent HE series instead.
Request HEN185-32 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HEN185-32 mean?
HEN identifies the non-insulated ferrule series – a bare tin plated copper sleeve with no collar. The 185 size code identifies the 185 mm² conductor size and 32 denotes a 32 mm barrel.
When is a non-insulated ferrule the right choice?
Where the terminal or enclosure already provides strain relief and insulation, or where collar height would not fit. The colour coding and strain relief of an insulated ferrule are given up in exchange.
Is HEN185-32 UL Listed?
No. The supplier confirms UL 486F covers the HE insulated series only; the HEN non-insulated series is not UL Listed. It is supplied with CE and RoHS documentation.
Is HEN185-32 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HEN185-32?
a hydraulic or heavy mechanical crimper covers the 185 mm² range that includes HEN185-32. Verify the finished crimp against the conductor and terminal requirements.
Is HEN185-32 sold individually?
No. The standard factory pack contains 50 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
