HTE1010
HTE1010 Twin Bootlace Ferrule: 2×1 mm² / 18 AWG Red, 10 mm Pin
The HTE1010 twin wire ferrule is an insulated bootlace ferrule that terminates two 1 mm² stranded conductors in one barrel, so a single crimp enters the terminal.
- Wire size2×1 mm² / catalogue reference 18 AWG
- Pin length10 mm / 0.39 in
- CollarRed, DIN colour configuration
- Rating17 A catalogue maximum
- ComplianceCE and RoHS; not UL Listed
- Pack1,000 pieces
HTE1010 wire ferrule dimensions and specifications
| Property | HTE1010 value |
|---|---|
| Product type | Twin insulated ferrule / twin bootlace ferrule |
| Conductor cross-section | 2×1 mm² |
| Catalogue AWG reference | 18 AWG |
| Pin / barrel length (F) | 10.0 mm / 0.39 in |
| Overall length (L) | 17.1 mm / 0.67 in |
| Collar width (W) | 5.5 mm / 0.22 in |
| Collar height (H) | 7.1 mm / 0.28 in |
| Barrel outside diameter (D) | 2.3 mm / 0.09 in |
| Barrel inside diameter (C) | 2.0 mm / 0.08 in |
| Collar colour shown | Red |
| Alternative factory colours | Yellow; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 17 A |
| Compliance | CE and RoHS; not UL Listed |
| Pack quantity | 1,000 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Select HTE1010 from the conductor’s marked 2×1 mm² cross-section first, then compare a 10 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

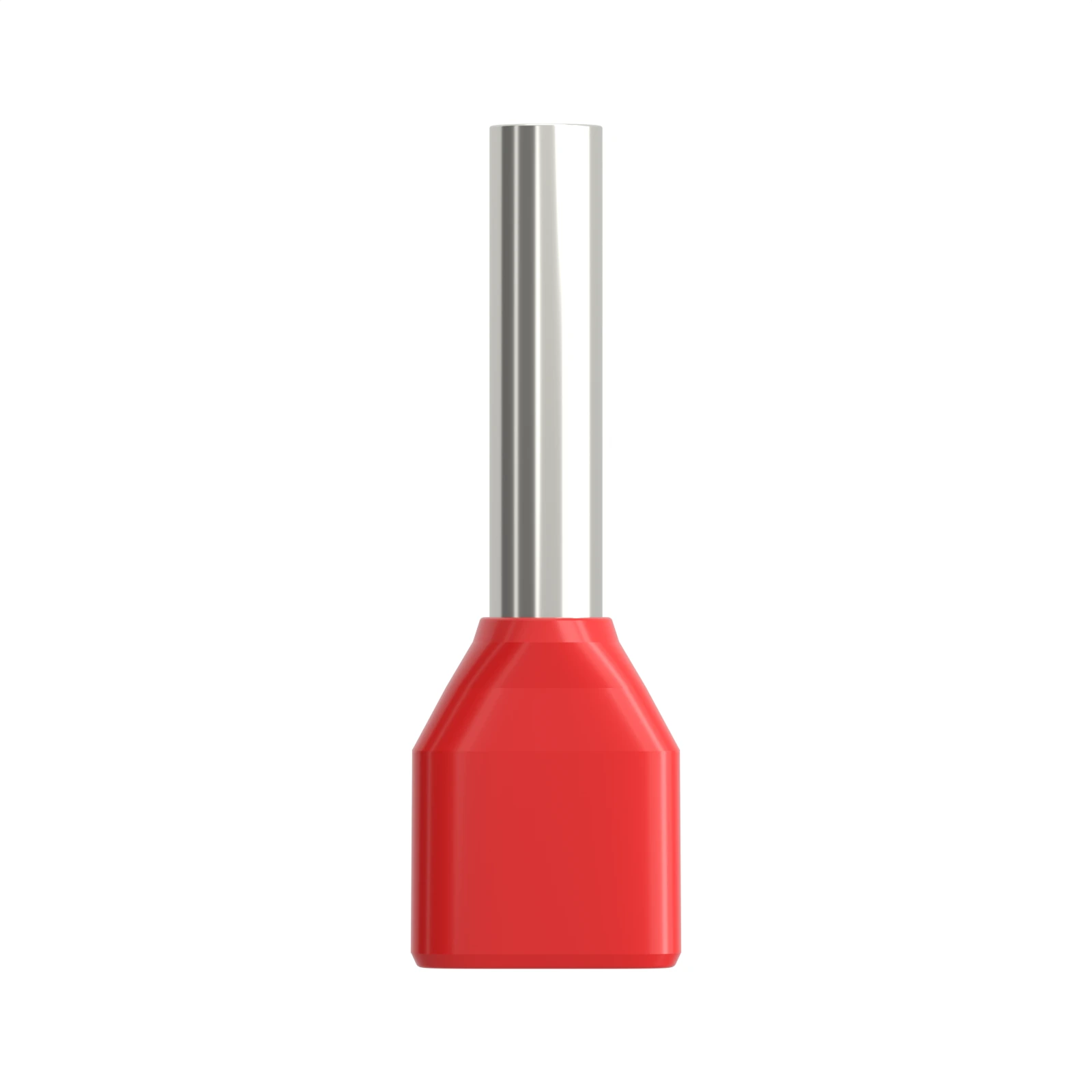

2×1 mm² red ferrule with a 10 mm pin
The model code is direct: 10 identifies the 1 mm² conductor size and 10 identifies the nominal pin length in millimetres. HTE1010 suits terminals that accept a 10 mm pin.
Compliance and ordering
HTE1010 is not UL Listed. The UL 486F listing covers the HE insulated single-wire series only, and the twin range is outside it. HTE1010 is supplied with CE and RoHS documentation. If the panel requires a UL Listed ferrule, specify the equivalent HE series instead.
Request HTE1010 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HTE1010 mean?
HTE identifies the insulated twin ferrule series, which terminates two conductors in one barrel. The 10 size code identifies the 1 mm² size of each conductor and 10 denotes a 10 mm pin.
Why use a twin ferrule instead of two single ferrules?
A twin ferrule brings two conductors into one terminal in a single crimp. Forcing two separate ferrules into one terminal risks an uneven clamp.
Is HTE1010 UL Listed?
No. The supplier confirms UL 486F covers the HE single-wire series only; the HTE twin series is not UL Listed. It is supplied with CE and RoHS documentation.
Is HTE1010 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HTE1010?
SN-06WF covers the 1 mm² range that includes HTE1010. Verify the finished crimp against the conductor and terminal requirements.
Is HTE1010 sold individually?
No. The standard factory pack contains 1,000 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
