HTE2510

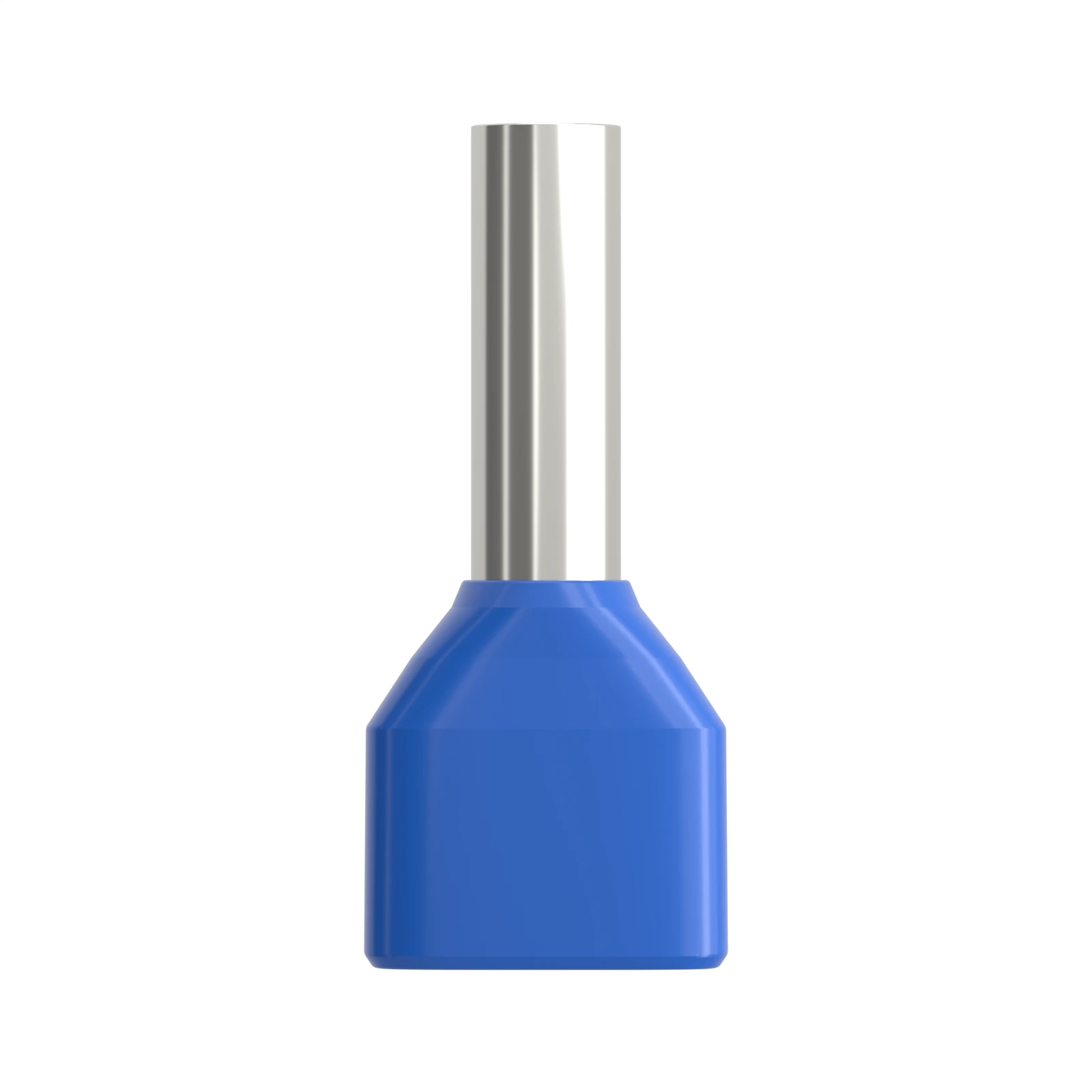

HTE2510 Twin Bootlace Ferrule: 2×2.5 mm² / 14 AWG Blue, 10 mm Pin

The HTE2510 is a blue 2 x 2.5 mm twin bootlace ferrule, also sold as a double wire ferrule, that terminates two 2.5 mm² / 14 AWG stranded conductors in one barrel so a single crimp enters the terminal.

  • Wire size2×2.5 mm² / catalogue reference 14 AWG
  • Pin length10 mm / 0.39 in
  • CollarBlue, the DIN 47002 colour for 2.5 mm²
  • Rating30 A catalogue maximum
  • ComplianceCE and RoHS; not UL Listed
  • Pack1,000 pieces
Verified modelDimensions and pack quantity match the HTE2510 supplier specification.
Catalogue configurationThe blue configuration is shown for catalogue reference; availability, pack quantity and lead time are confirmed by quotation.
Crimp toolSN-06WF covers the 2.5 mm² ferrule range. See the ferrule crimping guide for preparation and inspection steps.

HTE2510 wire ferrule dimensions and specifications

Property HTE2510 value
Product type Twin insulated ferrule / twin bootlace ferrule
Conductor cross-section 2×2.5 mm²
Catalogue AWG reference 14 AWG
Pin / barrel length (F) 10.0 mm / 0.39 in
Overall length (L) 18.5 mm / 0.73 in
Collar width (W) 8.0 mm / 0.31 in
Collar height (H) 8.5 mm / 0.33 in
Barrel outside diameter (D) 3.3 mm / 0.13 in
Barrel inside diameter (C) 2.9 mm / 0.11 in
Collar colour shown Blue
Alternative factory colours Grey; confirm when ordering
Barrel material Copper, tin plated
Collar material PA66 nylon, halogen-free
Maximum operating temperature 105 °C
Catalogue current rating 30 A
Compliance CE and RoHS; not UL Listed
Pack quantity 1,000 pcs

The AWG value is the supplier catalogue reference, not a mathematical conversion. Use the wire ferrule size and colour guide when comparing catalogue labels. Select HTE2510 from the conductor’s marked 2×2.5 mm² cross-section first, then compare a 10 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.


2.5 mm blue twin bootlace ferrule, 2×2.5 mm² / 14 AWG, with a 10 mm pin

The model code is direct: 25 identifies the 2.5 mm² conductor size and 10 identifies the nominal pin length in millimetres. HTE2510 suits terminals that accept a 10 mm pin. Compare every pin length and series at this cross-section on the 2.5 mm² bootlace ferrule page. Small quantities of the 2.5 mm² size are also included in the Termnex wire ferrule kits.

Compliance and ordering

HTE2510 is not UL Listed. The UL 486F listing covers the HE insulated single-wire series only, and the twin range is outside it. HTE2510 is supplied with CE and RoHS documentation. If the panel requires a UL Listed ferrule, specify the equivalent HE series instead.

Request HTE2510 pricing

Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.

FAQ

What does HTE2510 mean?

HTE identifies the insulated twin ferrule series, which terminates two conductors in one barrel. The 25 size code identifies the 2.5 mm² size of each conductor and 10 denotes a 10 mm pin.

Why use a twin ferrule instead of two single ferrules?

A twin ferrule brings two conductors into one terminal in a single crimp. Forcing two separate ferrules into one terminal risks an uneven clamp.

Is HTE2510 UL Listed?

No. The supplier confirms UL 486F covers the HE single-wire series only; the HTE twin series is not UL Listed. It is supplied with CE and RoHS documentation.

Is HTE2510 a bootlace ferrule?

Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.

Which crimp tool covers HTE2510?

SN-06WF covers the 2.5 mm² range that includes HTE2510. Verify the finished crimp against the conductor and terminal requirements.

Is HTE2510 sold individually?

No. The standard factory pack contains 1,000 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
