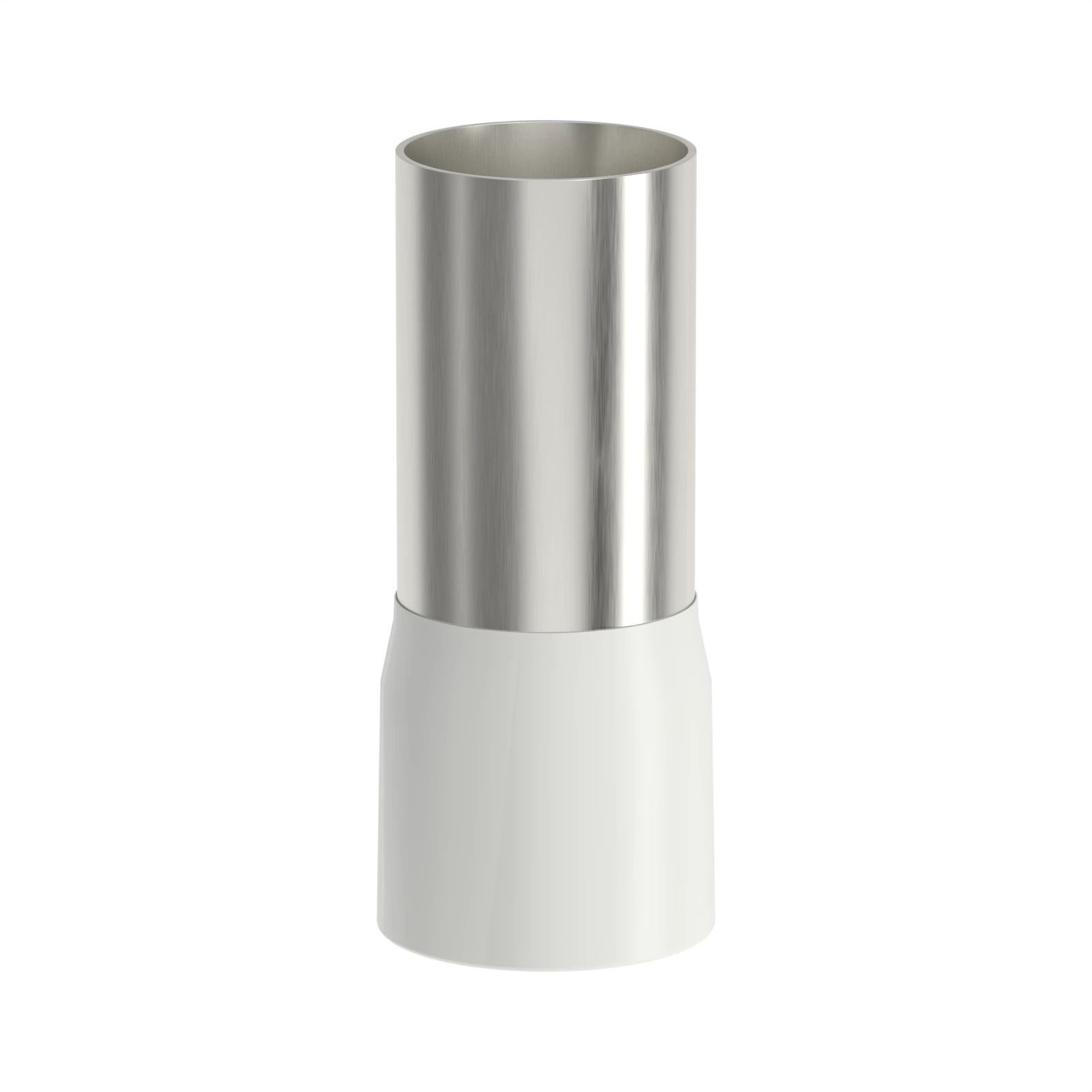

HE120-27 Insulated Bootlace Ferrule: 120 mm² / 4/0 AWG White, 27 mm Pin
The HE120-27 is a white 120 mm insulated bootlace ferrule, also listed as a wire ferrule or cord end terminal, for terminating 120 mm² / 4/0 AWG stranded conductor before it enters a screw or spring terminal.
- Wire size120 mm² / catalogue reference 4/0 AWG
- Pin length27 mm / 1.06 in
- CollarWhite; DIN 47002 defines no colour above 50 mm²
- Rating360 A catalogue maximum
- ComplianceCE and RoHS; not UL Listed
- Pack50 pieces
HE120-27 wire ferrule dimensions and specifications
| Property | HE120-27 value |
|---|---|
| Product type | Single-wire insulated ferrule / bootlace ferrule |
| Conductor cross-section | 120 mm² |
| Catalogue AWG reference | 4/0 AWG |
| Pin / barrel length (F) | 27.0 mm / 1.06 in |
| Overall length (L) | 47.6 mm / 1.87 in |
| Collar width (W) | 20.3 mm / 0.80 in |
| Collar height (H) | 20.6 mm / 0.81 in |
| Barrel outside diameter (D) | 17.7 mm / 0.70 in |
| Barrel inside diameter (C) | 16.7 mm / 0.66 in |
| Collar colour shown | White |
| Alternative factory colours | Blue; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 360 A |
| Compliance | CE and RoHS; not UL Listed |
| Pack quantity | 50 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Use the wire ferrule size and colour guide when comparing catalogue labels. Select HE120-27 from the conductor’s marked 120 mm² cross-section first, then compare a 27 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

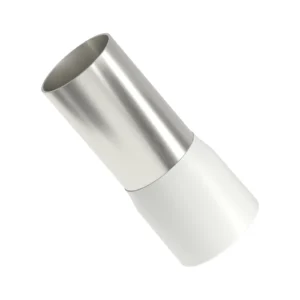

120 mm white bootlace ferrule, 120 mm² / 4/0 AWG, with a 27 mm pin
The model code is direct: 120 identifies the 120 mm² conductor size and 27 identifies the nominal pin length in millimetres. HE120-27 suits terminals that accept a 27 mm pin.
Compliance and ordering
HE120-27 is not UL Listed. The HE series has model-specific UL 486F coverage, and this exact model is outside the current covered-model list. HE120-27 is supplied with CE and RoHS documentation; confirm the required compliance documents with the quotation.
Request HE120-27 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HE120-27 mean?
HE identifies the insulated single-wire ferrule series. The 120 size code identifies the 120 mm² conductor size and 27 denotes a 27 mm nominal pin length.
Is white the only HE120-27 collar colour?
No. The shown Termnex configuration is white. Factory data also lists blue, so specify the required colour with the order.
Is HE120-27 UL Listed?
No. HE120-27 is outside the current UL 486F covered-model list. The HE series has model-specific coverage, so do not extend the listing from a neighbouring size.
Is HE120-27 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HE120-27?
a hydraulic or heavy mechanical crimper covers the 120 mm² range that includes HE120-27. Verify the finished crimp against the conductor and terminal requirements.
Is HE120-27 sold individually?
No. The standard factory pack contains 50 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
