HE95-25

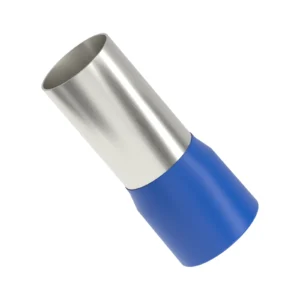

HE95-25 Insulated Bootlace Ferrule: 95 mm² / 3/0 AWG Blue, 25 mm Pin
The HE95-25 is a blue 95 mm insulated bootlace ferrule, also listed as a wire ferrule or cord end terminal, for terminating 95 mm² / 3/0 AWG stranded conductor before it enters a screw or spring terminal.
- Wire size95 mm² / catalogue reference 3/0 AWG
- Pin length25 mm / 0.98 in
- CollarBlue; DIN 47002 defines no colour above 50 mm²
- Rating310 A catalogue maximum
- ComplianceCE and RoHS; not UL Listed
- Pack50 pieces
HE95-25 wire ferrule dimensions and specifications
| Property | HE95-25 value |
|---|---|
| Product type | Single-wire insulated ferrule / bootlace ferrule |
| Conductor cross-section | 95 mm² |
| Catalogue AWG reference | 3/0 AWG |
| Pin / barrel length (F) | 25.0 mm / 0.98 in |
| Overall length (L) | 44.0 mm / 1.73 in |
| Collar width (W) | 18.5 mm / 0.73 in |
| Collar height (H) | 19.0 mm / 0.75 in |
| Barrel outside diameter (D) | 15.6 mm / 0.61 in |
| Barrel inside diameter (C) | 14.8 mm / 0.58 in |
| Collar colour shown | Blue |
| Alternative factory colours | Red; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 310 A |
| Compliance | CE and RoHS; not UL Listed |
| Pack quantity | 50 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Use the wire ferrule size and colour guide when comparing catalogue labels. Select HE95-25 from the conductor’s marked 95 mm² cross-section first, then compare a 25 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

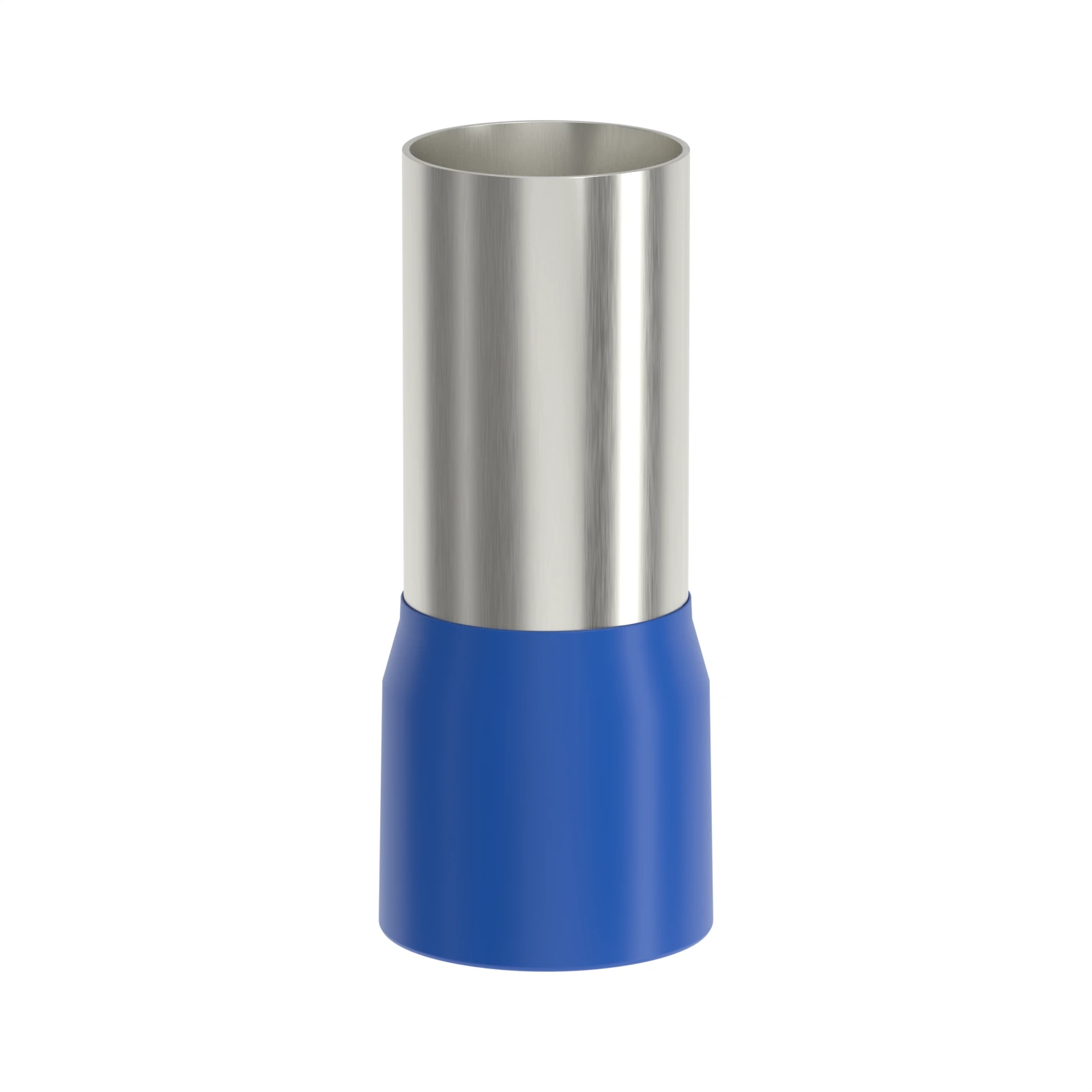

95 mm blue bootlace ferrule, 95 mm² / 3/0 AWG, with a 25 mm pin
The model code is direct: 95 identifies the 95 mm² conductor size and 25 identifies the nominal pin length in millimetres. HE95-25 suits terminals that accept a 25 mm pin.
Compliance and ordering
HE95-25 is not UL Listed. The HE series has model-specific UL 486F coverage, and this exact model is outside the current covered-model list. HE95-25 is supplied with CE and RoHS documentation; confirm the required compliance documents with the quotation.
Request HE95-25 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HE95-25 mean?
HE identifies the insulated single-wire ferrule series. The 95 size code identifies the 95 mm² conductor size and 25 denotes a 25 mm nominal pin length.
Is blue the only HE95-25 collar colour?
No. The shown Termnex configuration is blue. Factory data also lists red, so specify the required colour with the order.
Is HE95-25 UL Listed?
No. HE95-25 is outside the current UL 486F covered-model list. The HE series has model-specific coverage, so do not extend the listing from a neighbouring size.
Is HE95-25 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HE95-25?
a hydraulic or heavy mechanical crimper covers the 95 mm² range that includes HE95-25. Verify the finished crimp against the conductor and terminal requirements.
Is HE95-25 sold individually?
No. The standard factory pack contains 50 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
