HE4015
HE4015 Insulated Bootlace Ferrule: 4 mm² / 12 AWG Grey, 15 mm Pin
The HE4015 is a grey 4 mm insulated bootlace ferrule, also listed as a wire ferrule or cord end terminal, for terminating 4 mm² / 12 AWG stranded conductor before it enters a screw or spring terminal.
- Wire size4 mm² / catalogue reference 12 AWG
- Pin length15 mm / 0.59 in
- CollarGrey, the DIN 47002 colour for 4 mm²
- Rating35 A catalogue maximum
- ComplianceCE and RoHS; not UL Listed
- Pack1,000 pieces
HE4015 wire ferrule dimensions and specifications
| Property | HE4015 value |
|---|---|
| Product type | Single-wire insulated ferrule / bootlace ferrule |
| Conductor cross-section | 4 mm² |
| Catalogue AWG reference | 12 AWG |
| Pin / barrel length (F) | 15.0 mm / 0.59 in |
| Overall length (L) | 22.4 mm / 0.88 in |
| Collar width (W) | 4.8 mm / 0.19 in |
| Collar height (H) | 7.4 mm / 0.29 in |
| Barrel outside diameter (D) | 3.2 mm / 0.13 in |
| Barrel inside diameter (C) | 2.8 mm / 0.11 in |
| Collar colour shown | Grey |
| Alternative factory colours | Orange; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 35 A |
| Compliance | CE and RoHS; not UL Listed |
| Pack quantity | 1,000 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Use the wire ferrule size and colour guide when comparing catalogue labels. Select HE4015 from the conductor’s marked 4 mm² cross-section first, then compare a 15 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

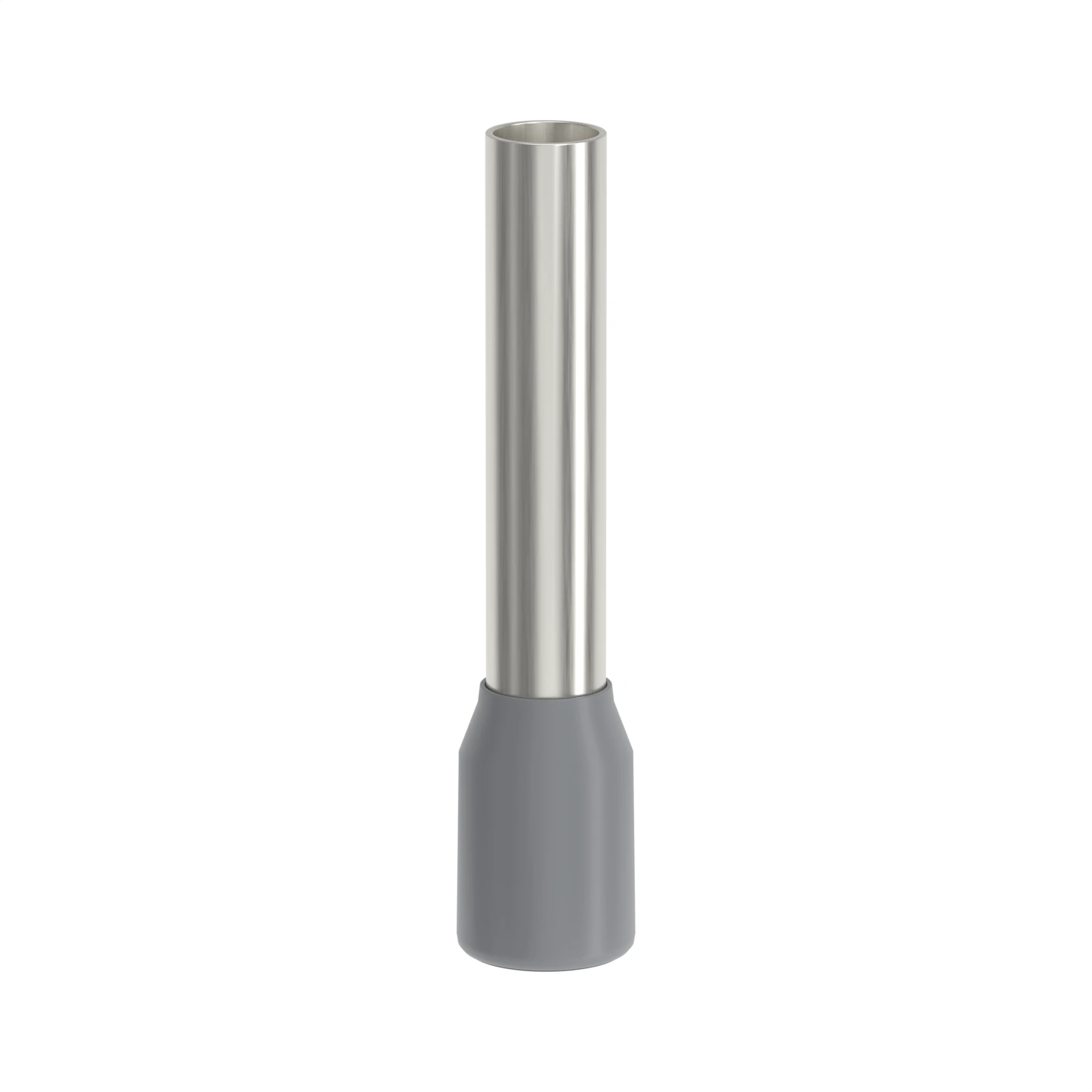

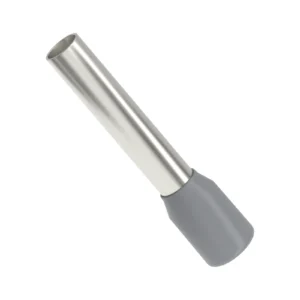

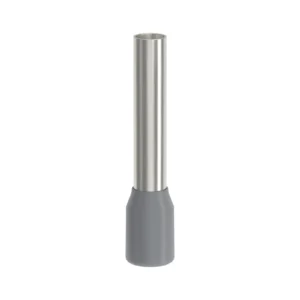

4 mm grey bootlace ferrule, 4 mm² / 12 AWG, with a 15 mm pin
The model code is direct: 40 identifies the 4 mm² conductor size and 15 identifies the nominal pin length in millimetres. HE4015 suits terminals that accept a 15 mm pin. Compare every pin length and series at this cross-section on the 4 mm² bootlace ferrule page. Small quantities of the 4 mm² size are also included in the Termnex wire ferrule kits.
Compliance and ordering
HE4015 is not UL Listed. The HE series has model-specific UL 486F coverage, and this exact model is outside the current covered-model list. HE4015 is supplied with CE and RoHS documentation; confirm the required compliance documents with the quotation.
Request HE4015 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HE4015 mean?
HE identifies the insulated single-wire ferrule series. The 40 size code identifies the 4 mm² conductor size and 15 denotes a 15 mm nominal pin length.
Is grey the only HE4015 collar colour?
No. The shown Termnex configuration is grey. Factory data also lists orange, so specify the required colour with the order.
Is HE4015 UL Listed?
No. HE4015 is outside the current UL 486F covered-model list. The HE series has model-specific coverage, so do not extend the listing from a neighbouring size.
Is HE4015 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HE4015?
SN-06WF covers the 4 mm² range that includes HE4015. Verify the finished crimp against the conductor and terminal requirements.
Is HE4015 sold individually?
No. The standard factory pack contains 1,000 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
