HE6012

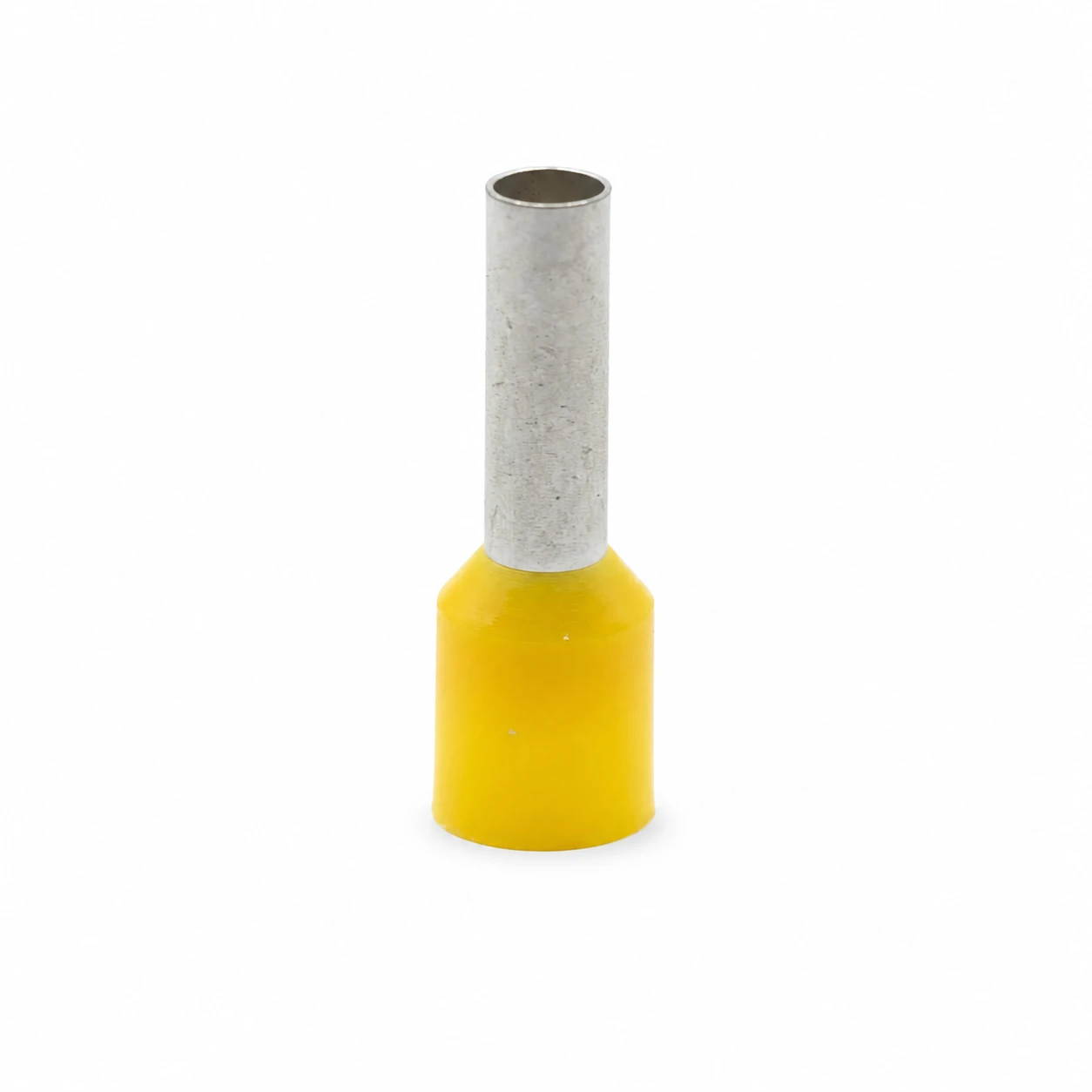

HE6012 Insulated Bootlace Ferrule: 6 mm² / 10 AWG Yellow, 12 mm Pin
The HE6012 is a yellow 6 mm insulated bootlace ferrule, also listed as a wire ferrule or cord end terminal, for terminating 6 mm² / 10 AWG stranded conductor before it enters a screw or spring terminal.
- Wire size6 mm² / catalogue reference 10 AWG
- Pin length12 mm / 0.47 in
- CollarYellow, the DIN 47002 colour for 6 mm²
- Rating50 A catalogue maximum
- CompliancecULus Listed to UL 486F, CE and RoHS; certificate supplied with quotation
- Pack1,000 pieces
HE6012 wire ferrule dimensions and specifications
| Property | HE6012 value |
|---|---|
| Product type | Single-wire insulated ferrule / bootlace ferrule |
| Conductor cross-section | 6 mm² |
| Catalogue AWG reference | 10 AWG |
| Pin / barrel length (F) | 12.0 mm / 0.47 in |
| Overall length (L) | 20.5 mm / 0.81 in |
| Collar width (W) | 6.0 mm / 0.24 in |
| Collar height (H) | 8.5 mm / 0.33 in |
| Barrel outside diameter (D) | 3.9 mm / 0.15 in |
| Barrel inside diameter (C) | 3.5 mm / 0.14 in |
| Collar colour shown | Yellow |
| Alternative factory colours | Black or Green; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 50 A |
| Compliance | cULus Listed to UL 486F, CE and RoHS; certificate supplied with quotation |
| Pack quantity | 1,000 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Use the wire ferrule size and colour guide when comparing catalogue labels. Select HE6012 from the conductor’s marked 6 mm² cross-section first, then compare a 12 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

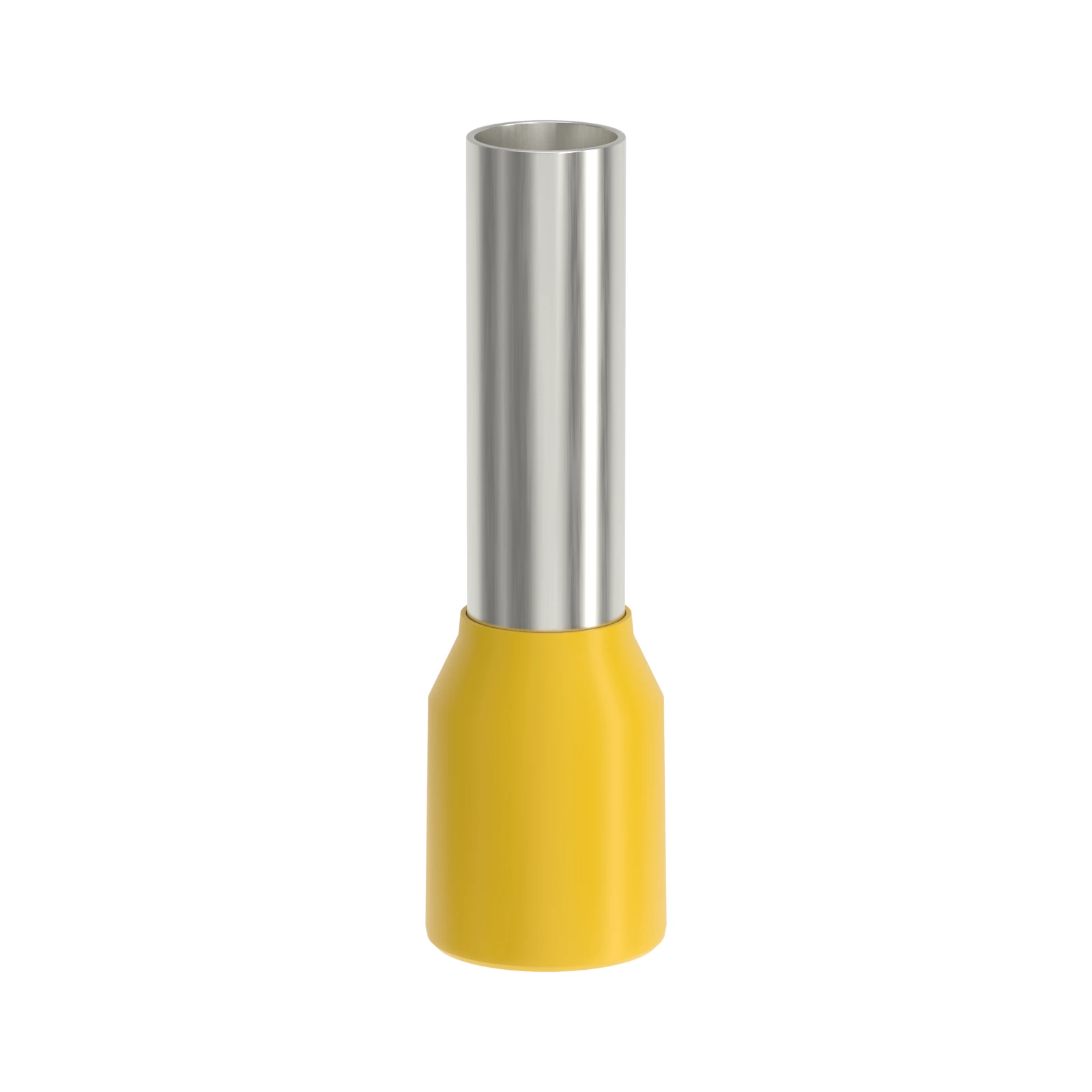

6 mm yellow bootlace ferrule, 6 mm² / 10 AWG, with a 12 mm pin
The model code is direct: 60 identifies the 6 mm² conductor size and 12 identifies the nominal pin length in millimetres. HE6012 suits terminals that accept a 12 mm pin. Compare every pin length and series at this cross-section on the 6 mm² bootlace ferrule page. Small quantities of the 6 mm² size are also included in the Termnex wire ferrule kits.
UL 486F and ordering
HE6012 is cULus Listed to UL 486F, covering both the US and Canada, and the listing covers this exact model. The official UL certificate and file records are supplied with the formal quotation pack, alongside the CE Declaration of Conformity and RoHS documentation supplied with every HE model. Project approval still depends on the terminal, crimp tool, conductor and installation requirements specified by the panel builder.
Request HE6012 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HE6012 mean?
HE identifies the insulated single-wire ferrule series. The 60 size code identifies the 6 mm² conductor size and 12 denotes a 12 mm nominal pin length.
Is yellow the only HE6012 collar colour?
No. The shown Termnex configuration is yellow. Factory data also lists black or green, so specify the required colour with the order.
Is HE6012 UL Listed?
Yes. HE6012 is cULus Listed to UL 486F, covering both the US and Canada. The official UL certificate and file records are supplied with the formal quotation pack. Project approval still depends on the terminal, tool and conductor specified.
Is HE6012 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HE6012?
SN-06WF covers the 6 mm² range that includes HE6012. Verify the finished crimp against the conductor and terminal requirements.
Is HE6012 sold individually?
No. The standard factory pack contains 1,000 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
