HE6010

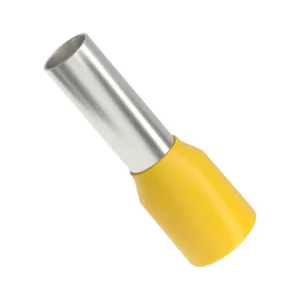

HE6010 Insulated Bootlace Ferrule: 6 mm² / 10 AWG Yellow, 10 mm Pin
The HE6010 is a yellow 6 mm insulated bootlace ferrule, also listed as a wire ferrule or cord end terminal, for terminating 6 mm² / 10 AWG stranded conductor before it enters a screw or spring terminal.
- Wire size6 mm² / catalogue reference 10 AWG
- Pin length10 mm / 0.39 in
- CollarYellow, the DIN 47002 colour for 6 mm²
- Rating50 A catalogue maximum
- ComplianceCE and RoHS; not UL Listed
- Pack1,000 pieces
HE6010 wire ferrule dimensions and specifications
| Property | HE6010 value |
|---|---|
| Product type | Single-wire insulated ferrule / bootlace ferrule |
| Conductor cross-section | 6 mm² |
| Catalogue AWG reference | 10 AWG |
| Pin / barrel length (F) | 10.0 mm / 0.39 in |
| Overall length (L) | 18.5 mm / 0.73 in |
| Collar width (W) | 6.0 mm / 0.24 in |
| Collar height (H) | 8.5 mm / 0.33 in |
| Barrel outside diameter (D) | 3.9 mm / 0.15 in |
| Barrel inside diameter (C) | 3.5 mm / 0.14 in |
| Collar colour shown | Yellow |
| Alternative factory colours | Black or Green; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 50 A |
| Compliance | CE and RoHS; not UL Listed |
| Pack quantity | 1,000 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Use the wire ferrule size and colour guide when comparing catalogue labels. Select HE6010 from the conductor’s marked 6 mm² cross-section first, then compare a 10 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

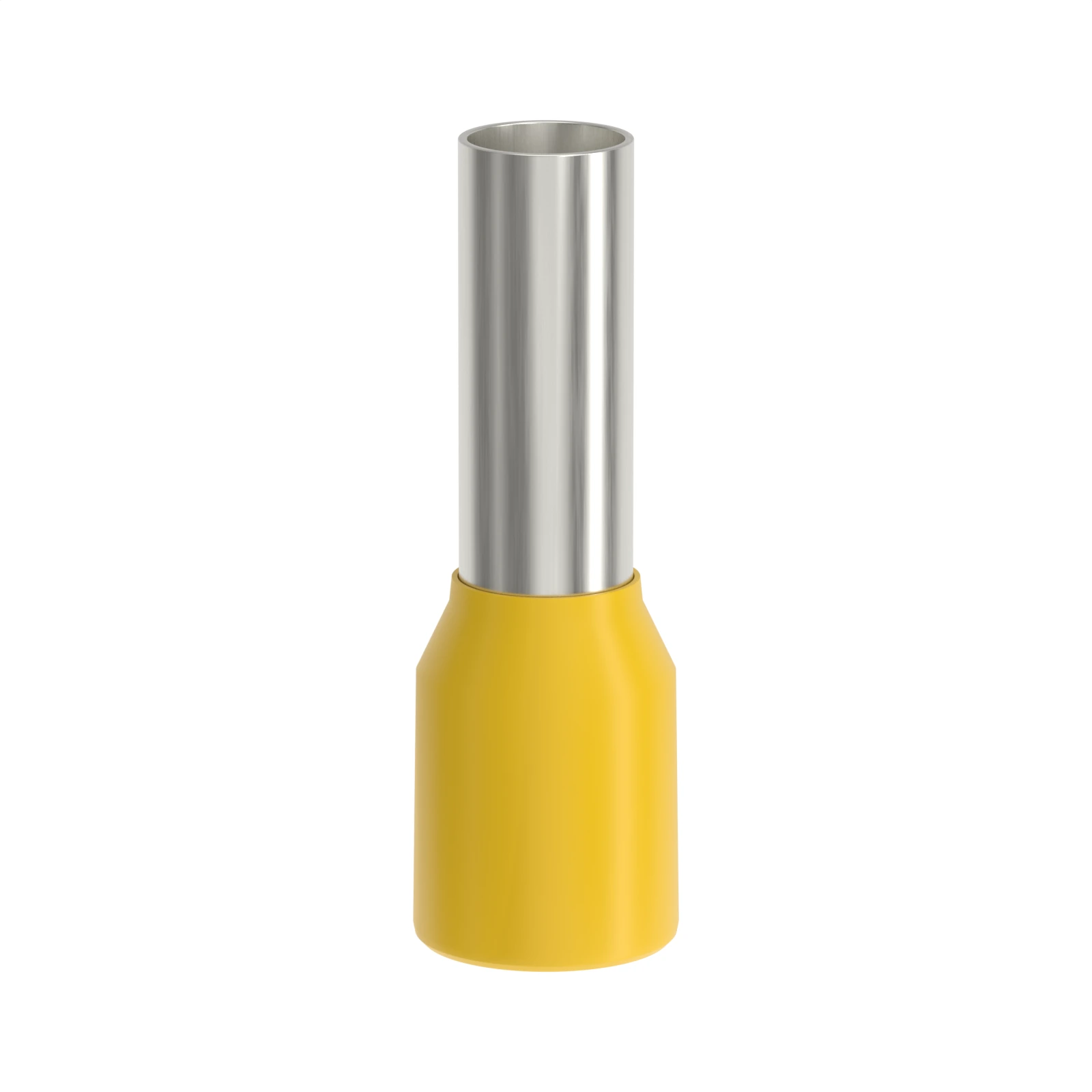

6 mm yellow bootlace ferrule, 6 mm² / 10 AWG, with a 10 mm pin
The model code is direct: 60 identifies the 6 mm² conductor size and 10 identifies the nominal pin length in millimetres. HE6010 suits terminals that accept a 10 mm pin. Compare every pin length and series at this cross-section on the 6 mm² bootlace ferrule page. Small quantities of the 6 mm² size are also included in the Termnex wire ferrule kits.
Compliance and ordering
HE6010 is not UL Listed. The HE series has model-specific UL 486F coverage, and this exact model is outside the current covered-model list. HE6010 is supplied with CE and RoHS documentation; confirm the required compliance documents with the quotation.
Request HE6010 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HE6010 mean?
HE identifies the insulated single-wire ferrule series. The 60 size code identifies the 6 mm² conductor size and 10 denotes a 10 mm nominal pin length.
Is yellow the only HE6010 collar colour?
No. The shown Termnex configuration is yellow. Factory data also lists black or green, so specify the required colour with the order.
Is HE6010 UL Listed?
No. HE6010 is outside the current UL 486F covered-model list. The HE series has model-specific coverage, so do not extend the listing from a neighbouring size.
Is HE6010 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HE6010?
SN-06WF covers the 6 mm² range that includes HE6010. Verify the finished crimp against the conductor and terminal requirements.
Is HE6010 sold individually?
No. The standard factory pack contains 1,000 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
