HE70-20 Insulated Bootlace Ferrule: 70 mm² / 2/0 AWG Orange, 20 mm Pin
The HE70-20 is a orange 70 mm insulated bootlace ferrule, also listed as a wire ferrule or cord end terminal, for terminating 70 mm² / 2/0 AWG stranded conductor before it enters a screw or spring terminal.
- Wire size70 mm² / catalogue reference 2/0 AWG
- Pin length20 mm / 0.79 in
- CollarOrange; DIN 47002 defines no colour above 50 mm²
- Rating265 A catalogue maximum
- ComplianceCE and RoHS; not UL Listed
- Pack50 pieces
HE70-20 wire ferrule dimensions and specifications
| Property | HE70-20 value |
|---|---|
| Product type | Single-wire insulated ferrule / bootlace ferrule |
| Conductor cross-section | 70 mm² |
| Catalogue AWG reference | 2/0 AWG |
| Pin / barrel length (F) | 20.0 mm / 0.79 in |
| Overall length (L) | 37.0 mm / 1.46 in |
| Collar width (W) | 16.0 mm / 0.63 in |
| Collar height (H) | 17.0 mm / 0.67 in |
| Barrel outside diameter (D) | 14.3 mm / 0.56 in |
| Barrel inside diameter (C) | 13.5 mm / 0.53 in |
| Collar colour shown | Orange |
| Alternative factory colours | Yellow; confirm when ordering |
| Barrel material | Copper, tin plated |
| Collar material | PA66 nylon, halogen-free |
| Maximum operating temperature | 105 °C |
| Catalogue current rating | 265 A |
| Compliance | CE and RoHS; not UL Listed |
| Pack quantity | 50 pcs |
The AWG value is the supplier catalogue reference, not a mathematical conversion. Use the wire ferrule size and colour guide when comparing catalogue labels. Select HE70-20 from the conductor’s marked 70 mm² cross-section first, then compare a 20 mm pin with the terminal maker’s accepted ferrule and strip-length requirements.

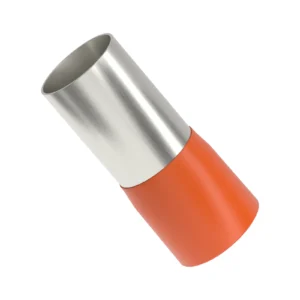

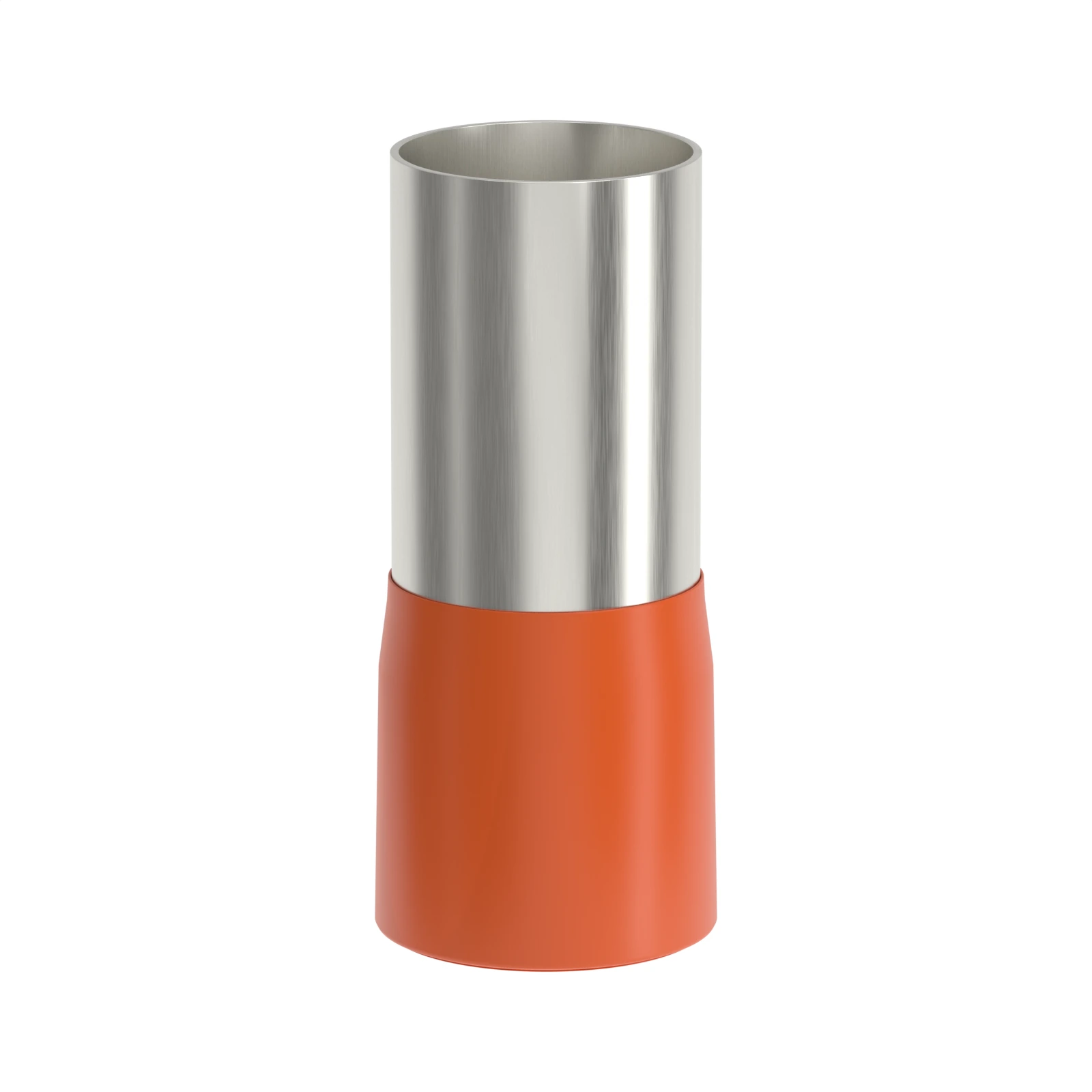

70 mm orange bootlace ferrule, 70 mm² / 2/0 AWG, with a 20 mm pin
The model code is direct: 70 identifies the 70 mm² conductor size and 20 identifies the nominal pin length in millimetres. HE70-20 suits terminals that accept a 20 mm pin.
Compliance and ordering
HE70-20 is not UL Listed. The HE series has model-specific UL 486F coverage, and this exact model is outside the current covered-model list. HE70-20 is supplied with CE and RoHS documentation; confirm the required compliance documents with the quotation.
Request HE70-20 pricing
Send the required quantity and destination. Termnex will confirm current availability, lead time and the documentation supplied with the quoted pack.
FAQ
What does HE70-20 mean?
HE identifies the insulated single-wire ferrule series. The 70 size code identifies the 70 mm² conductor size and 20 denotes a 20 mm nominal pin length.
Is orange the only HE70-20 collar colour?
No. The shown Termnex configuration is orange. Factory data also lists yellow, so specify the required colour with the order.
Is HE70-20 UL Listed?
No. HE70-20 is outside the current UL 486F covered-model list. The HE series has model-specific coverage, so do not extend the listing from a neighbouring size.
Is HE70-20 a bootlace ferrule?
Yes. Wire ferrule, bootlace ferrule, cable ferrule and cord end terminal are common names for this type of stranded-wire termination.
Which crimp tool covers HE70-20?
a hydraulic or heavy mechanical crimper covers the 70 mm² range that includes HE70-20. Verify the finished crimp against the conductor and terminal requirements.
Is HE70-20 sold individually?
No. The standard factory pack contains 50 pieces. Small evaluation quantities and commercial terms are confirmed with the quotation.
